RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
DRIVE TRAIN, FRONT HALF SHAFT
5
Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME AND SIDE BARS
by
DRIVE TRAIN, FRONT PROP SHAFT
DRIVE TRAIN, FRONT HALF SHAFT
1
2
3
4
4
5
6
7
1
2
3
4
5
1
HALFSHAFT ASSEMBLY; FRONT
1332825
$398,99 Unit Price incl. VAT
2
DRIVE SHAFT CIRCLIP
7670092
$14,69 Unit Price incl. VAT
3
PLUNGING JOINT
2204360
9999999
Not Available
4
RING SPRING
7710664
9999999
Not Available
5
CV JOINT BOOT KIT
2204361
$99,74 Unit Price incl. VAT
6
CV JOINT BOOT KIT
2204362
$104,99 Unit Price incl. VAT
7
CV JOINT
2204363
9999999
Not Available

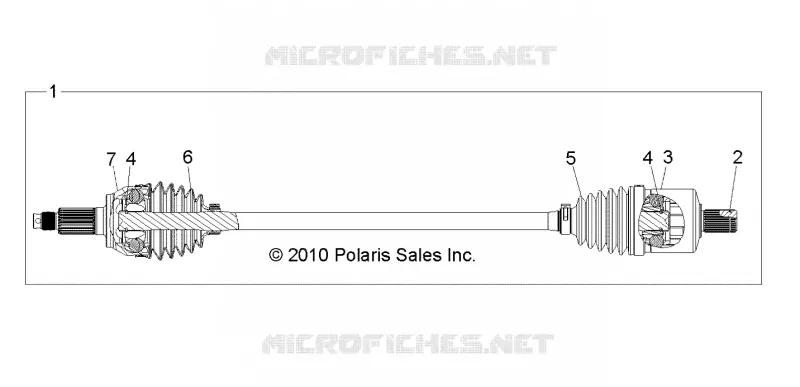

Find the detailed DRIVE TRAIN, FRONT HALF SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
