FUEL TANK ASSEMBLY (4916361636004A) for POLARIS BIG BOSS 4X6 - W898627 from 1989

FUEL TANK ASSEMBLY (4916361636004A)

1

TANK FUEL

5430968

9999999

Not Available

2

GAS CAP GASKET

5810144

9999999

Not Available

3

GAS CAP; BLACK

5430725

9999999

Not Available

4

TANK VENT

5431053

9999999

Not Available

5

LINE VENT (38.0 )

5521087

8360009-600

$83,99 Unit Price incl. VAT

6

SCREW(10)

7512310

$4,19 Unit Price incl. VAT

7

COVER MOUNT FUEL BRACKET RIGHT PLTD

5222155

9999999

Not Available

7

FUEL COVER MOUNT BRACKET LEFT PLTD

5222154

9999999

Not Available

8

SCREW

7512208

9999999

Not Available

9

BRKT R.TANK MT.

5220916

9999999

Not Available

10

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

11

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

12

DUCT INLET DOWN TUBE

5431006

9999999

Not Available

13

SCREW SELF-TAP

7522004

9999999

Not Available

14

FUEL LEVER

5431021

9999999

Not Available

15

COMPRESSION SPRING LEVER

7041209

9999999

Not Available

16

LEVEREXT. FUEL

5431020

9999999

Not Available

17

HOSE CLAMP

7080236

$3,14 Unit Price incl. VAT

18

LINE FUEL (6 FT.)

5521204

9999999

Not Available

19

GASKET FUEL VALVE

5810308

9999999

Not Available

20

VALVE FUEL Substituted by 7051002

7052046

Not Available

21

FLAT WASHER

7558301

$2,09 Unit Price incl. VAT

22

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

23

BOLT BLACK

7512282

9999999

Not Available

24

PAD SILENCER

5810423

9999999

Not Available

25

PAD

5810317

9999999

Not Available

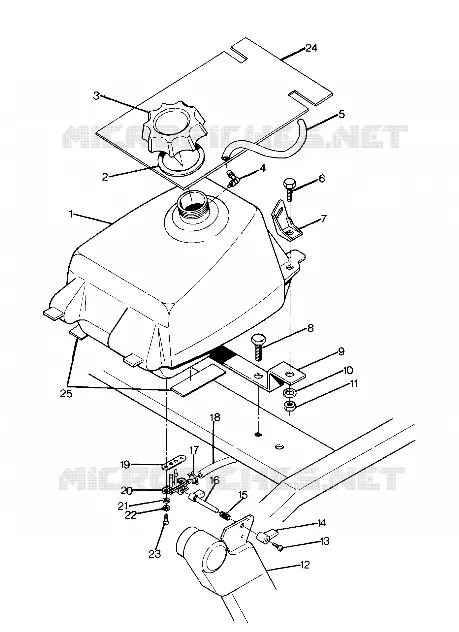

Find the detailed FUEL TANK ASSEMBLY (4916361636004A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
