IFS SHOCK (7043490) for POLARIS 800 DRAGON RMK 155 / 163 from 2010

IFS SHOCK (7043490)

-

SHOCK-IFS WEE AIR

7043490

9999999

Not Available

1

BODY LOOP (200147)

1800273

9999999

Not Available

2

END BEARING

1800040

$152,24 Unit Price incl. VAT

2

END CAP SNAP RING

1800041

$15,74 Unit Price incl. VAT

3

O-RING(10)

1800108

9999999

Not Available

4

SCREW-BUTTON HEAD 8/32(10)

1800109

$6,29 Unit Price incl. VAT

5

VALVE-NEEDLE

1800107

9999999

Not Available

6

BODY (500165)

1800285

9999999

Not Available

7

WEAR BAND

1800029

9999999

Not Available

8

BODY O-RING

1800030

$3,66 Unit Price incl. VAT

9

REBUILD SEAL ASSEMBLY

1800320

9999999

Not Available

10

ASM. SHAFT/EYELET (520171)

1800317

9999999

Not Available

11

SEAL HEAD

1800277

9999999

Not Available

12

WASHER (500503)

1800276

9999999

Not Available

13

CONVEX PISTON WITH BAND ASSEMBLY

1800130

9999999

Not Available

14

BOLT 3/8X1 1/2 (500314)

1800275

9999999

Not Available

15

SCR-3/8-16X2.25 HX FLG GR5 Y

7518554

$9,44 Unit Price incl. VAT

16

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

17

SCR-3/8-16X2 FLG HX GR5 Z

7518278

$13,64 Unit Price incl. VAT

18

SPACER .375 X .50 X .577

5135396

9999999

Not Available

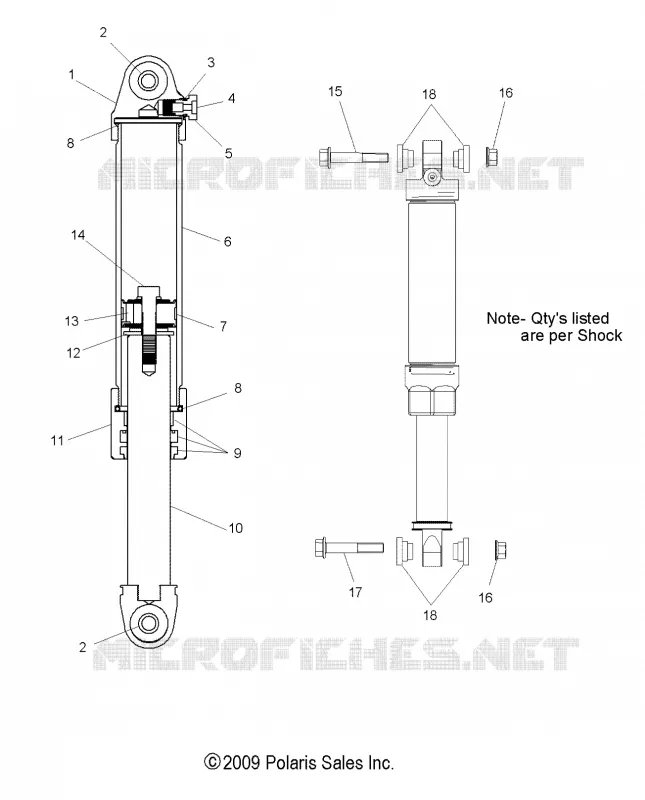

Find the detailed IFS SHOCK (7043490) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
