SUSPENSION, SHOCK MOUNTING AND SPRING (FT/RT) for POLARIS 600 RACER from 2024

SUSPENSION, SHOCK MOUNTING (IFS)

CHASSIS, TIE ROD BOOTS

SUSPENSION, SHOCK MOUNTING AND SPRING (FT/RT)

1

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

2

REDUCER BUSHING; .500 X .398

5137876

$13,64 Unit Price incl. VAT

3

HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM

7519285

$4,19 Unit Price incl. VAT

4

SHAFT-SHOCK 43.7

5342362

$52,49 Unit Price incl. VAT

5

BOLT-M10X1.25X70 HXFLG-OLIVE D

7518561

$13,64 Unit Price incl. VAT

6

SPRING-COMP 112# 2" BLK

7046140329

Not Available

6

SPRING-COMP 125# 2 BLK

7045890329

Not Available

7

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$7,34 Unit Price incl. VAT

8

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

9

PULLROD BUSHING

5342228

$27,29 Unit Price incl. VAT

10

HEX FLANGE SCREW 10MM X 1.25MM X 100MM

7519284

$7,34 Unit Price incl. VAT

11

BOLT-M10X1.25X40 HXFLG-OLIVE D

7518595

$10,49 Unit Price incl. VAT

12

BUSHING 10 MM X 16 MM X 24 MM

5143212

$34,64 Unit Price incl. VAT

13

O-RING .600 X .210 IN

5412290

$3,66 Unit Price incl. VAT

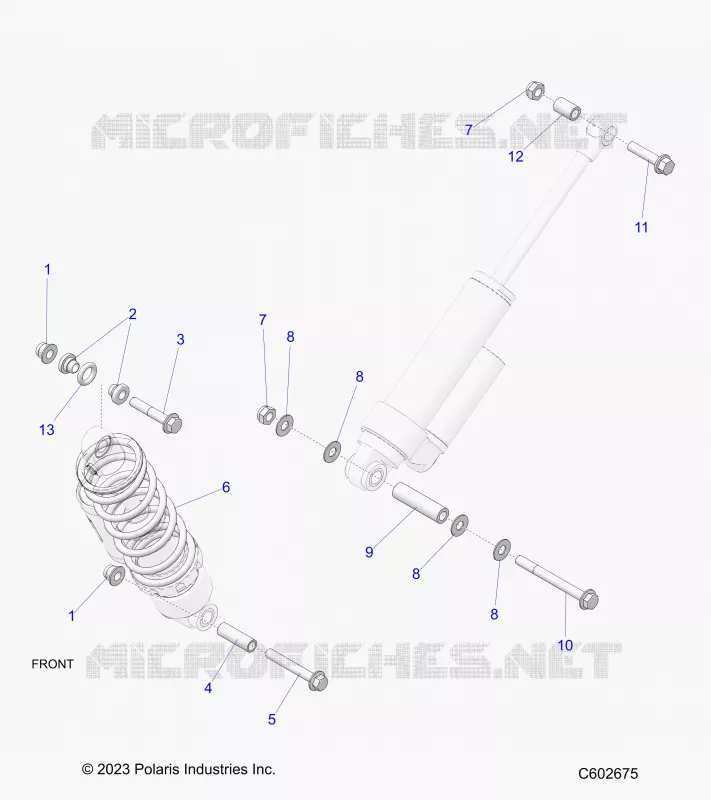

Find the detailed SUSPENSION, SHOCK MOUNTING AND SPRING (FT/RT) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
