1
Engine displacement
850
2
Year
2019
3
Trim
850 INDY XC 129 SC SELECT
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
by
FUEL SYSTEM, FUEL TANK ASM.
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
9
9
9
9
10
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
1
DOUBLE COOLANT BOTTLE WELD
1241177
9999999
Not Available
2
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
3
FUEL LINE; 1/4 ID
84500031525
Not Available
4
BRKT-CONNECTOR PLACEMENT TP
5455038
9999999
Not Available
5
SCR-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
6
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
7
CLIP-EDGE 1-3MM THICKNESS
7082427
$10,49 Unit Price incl. VAT
8
ASM-BRKT COOLANT BOTTLE TP
1024376
$26,24 Unit Price incl. VAT
9
CLAMP SPRING BAND
7081692
$8,39 Unit Price incl. VAT
10
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
11
HOSE-TUNNEL/BOTTLE
5416326
$27,29 Unit Price incl. VAT
12
HOSE-BOTTLE/TUNNEL
5416325
$52,49 Unit Price incl. VAT
13
BYPASS HOSE
5416321
$52,49 Unit Price incl. VAT
14
SUPPORT-THROTTLE CABLE/HOSE
5416538
$26,24 Unit Price incl. VAT
15
SUPPORT-STATOR WIRE
5416551
$20,99 Unit Price incl. VAT
16
HOSE-FRONT COOLER FEED
5416763
$52,49 Unit Price incl. VAT
17
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
18
HOSE SUPPORT
5416866
$52,49 Unit Price incl. VAT
19
ASEMBLY-COOLANT BOTTLE/HOSE
1263300
$203,16 Unit Price incl. VAT
20
SUPPORT HOSE
5416524
$62,99 Unit Price incl. VAT
21
SUPPORT-HOSE/ELECTRICAL WIRES
5416536
$47,24 Unit Price incl. VAT
22
SPRINGBAND-CLAMP 38/12;BLK
7082025
$10,49 Unit Price incl. VAT
23
HOSE-TBODY/COOLANT BOTTLE
5416289
5417221
$27,29 Unit Price incl. VAT
24
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
25
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
26
SUPPORT-FUEL LINE/OIL LINE
5416539
$13,64 Unit Price incl. VAT
27
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

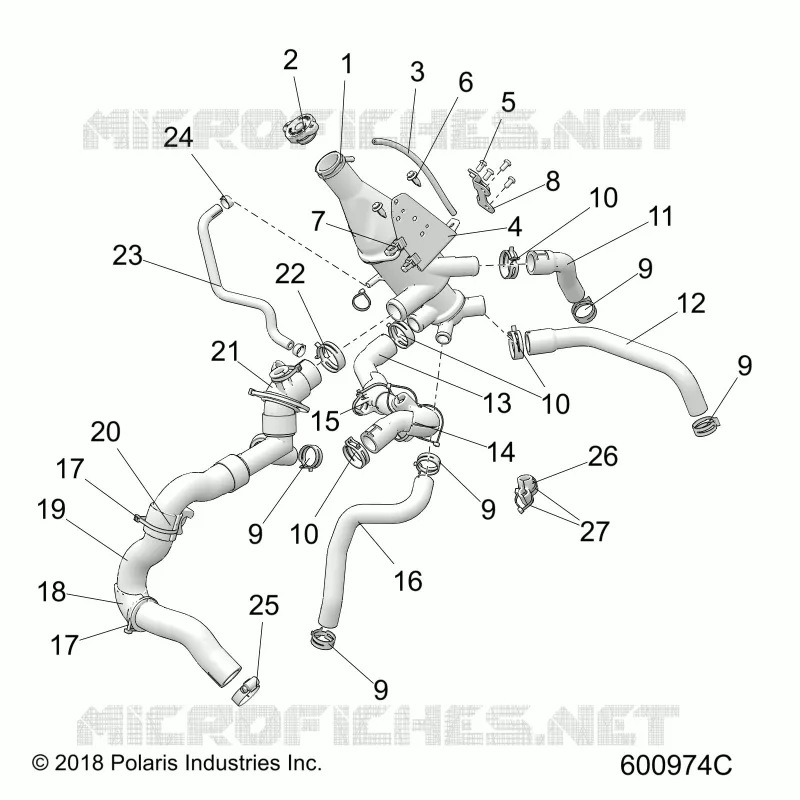

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
