FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY for POLARIS 850 INDY ADVENTURE 137 from 2020

ENGINE, PISTON & CRANKSHAFT

FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY

1

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

2

FOAM-BLOCK FUEL LINES/INTAKE

5814703

$8,39 Unit Price incl. VAT

3

ASM-FUEL LINE SUPPLY PFA PROG

2521791

$120,74 Unit Price incl. VAT

4

FUEL LINE

2521792

9999999

Not Available

5

INJECTOR HARNESS W/ LEAD

4017536

4082753

$503,99 Unit Price incl. VAT

6

SCR-M7X1.00X63 HX/SOC/SEMS10.9

7520849

$9,44 Unit Price incl. VAT

7

O-RING-BOSCH EV-14 UPPER

1500198

$20,25 Unit Price incl. VAT

8

BOSCH O-RING

5412891

$2,09 Unit Price incl. VAT

9

INJECTOR ELASTOMER RUBBER BUSHING

5436287

$6,29 Unit Price incl. VAT

10

THROTTLE BODY ASSEMBLY; 50 MM

1205875

$913,49 Unit Price incl. VAT

11

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

12

ASM-FUEL RAIL;133P

2522184

$782,24 Unit Price incl. VAT

13

K-CABLE TIE-90DEG;OFFSET;TREE

7082537

$7,34 Unit Price incl. VAT

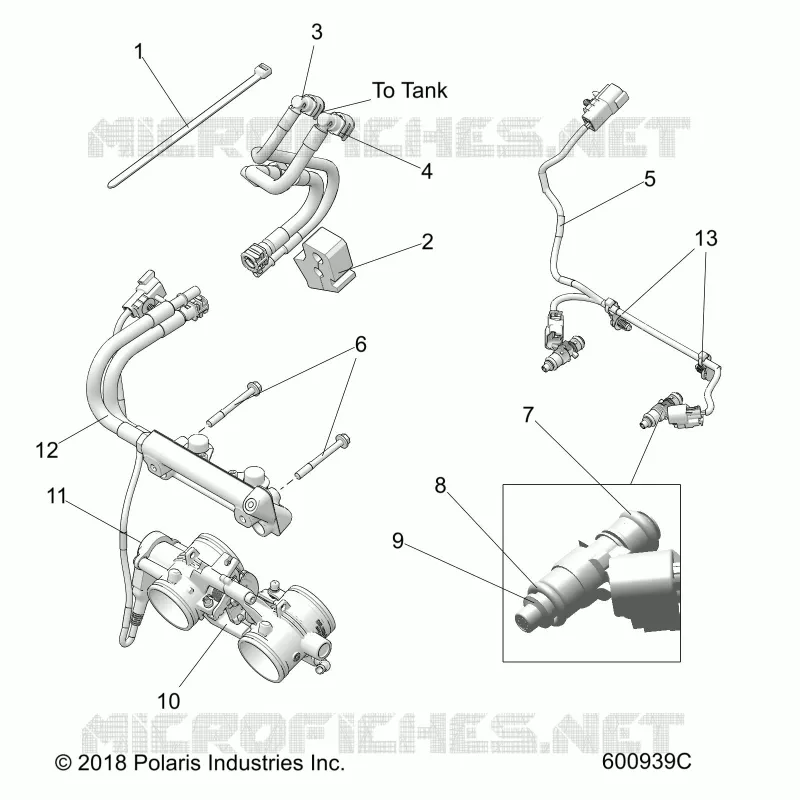

Find the detailed FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
