Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
VALVES AND CAMSHAFTS
5
Parts Diagram
Parts Catalog
ENGINE, VALVE COVER
by
REFERENCES, TOOL KIT AND OWNERS MANUAL
VALVES AND CAMSHAFTS
13
14
14
15
16
17
18
19
1
INTAKE CAMSHAFT ASSEMBLY; RZR
1204841
9999999
Not Available
2
EXHAUST CAMSHAFT ASSEMBLY
1204786
$209,99 Unit Price incl. VAT
3
INTAKE VALVE; STEEL; G-90
3022134
3022884
$52,49 Unit Price incl. VAT
4
EXHAUST VALVE; STEEL
3022135
$99,74 Unit Price incl. VAT
5
BUCKET TAPPET VALVE; 31.1 MM
3022443
$73,49 Unit Price incl. VAT
6
VALVE LASH SHIM 2.425
3022173242
Not Available
6
SHIM-VALVE LASH 2.625
3022173262
Not Available
6
VALVE LASH SHIM; 2.275
3022173228
Not Available
6
VALVE LASH SHIM; 2.400
3022173240
Not Available
6
SHIM-VALVE LASH 2.975
3022173298
Not Available
6
SHIM-VALVE LASH 2.950
3022173295
Not Available
6
VALVE LASH SHIM; 2.500
3022173250
Not Available
6
SHIM-VALVE LASH 3.000
3022173300
Not Available
6
VALVE LASH SHIM; 2.375
3022173238
Not Available
6
SHIM-VALVE LASH 2.075
3022173208
Not Available
6
SHIM-VALVE LASH 1.975
3022173198
Not Available
6
VALVE LASH SHIM; 1.850
3022173185
Not Available
6
VALVE LASH SHIM; 2.550
3022173255
Not Available
6
SHIM-VALVE LASH 1.825
3022173182
Not Available
6
VALVE LASH SHIM; 1.700
3022173170
Not Available
6
SHIM-VALVE LASH 2.750
3022173275
Not Available
6
SHIM-VALVE LASH 2.825
3022173282
Not Available
6
SHIM-VALVE LASH 2.925
3022173292
Not Available
6
SHIM-VALVE LASH 1.775
3022173178
Not Available
6
VALVE LASH SHIM; 1.725
3022173172
Not Available
6
SHIM-VALVE LASH 2.700
3022173270
Not Available
6
SHIM-VALVE LASH 2.775
3022173278
Not Available
6
SHIM-VALVE LASH 2.875
3022173288
Not Available
6
SHIM-VALVE LASH 2.900
3022173290
Not Available
6
SHIM-VALVE LASH 2.650
3022173265
Not Available
6
VALVE LASH SHIM; 2.450
3022173245
Not Available
6
SHIM-VALVE LASH 2.025
3022173202
Not Available
6
SHIM-VALVE LASH 1.875
3022173188
Not Available
6
SHIM-VALVE LASH 1.950
3022173195
Not Available
6
SHIM-VALVE LASH 2.575
3022173258
Not Available
6
SHIM-VALVE LASH 1.800
3022173180
Not Available
6
SHIM-VALVE LASH 1.925
3022173192
Not Available
6
VALVE LASH SHIM; 2.350
3022173235
Not Available
6
VALVE LASH SHIM; 2.100
3022173210
Not Available
6
VALVE SHIM LASH; 2.2
3022173220
Not Available
6
VALVE LASH SHIM; 2.175
3022173218
Not Available
6
VALVE LASH SHIM; 2.300
3022173230
Not Available
6
VALVE LASH SHIM; 2.125
3022173212
Not Available
6
SHIM-VALVE LASH 2.600
3022173260
Not Available
6
SHIM-VALVE LASH 1.750
3022173175
Not Available
6
SHIM-VALVE LASH 2.725
3022173272
Not Available
6
SHIM-VALVE LASH 2.525
3022173252
Not Available
6
VALVE LASH SHIM; 2.225
3022173222
Not Available
6
VALVE LASH SHIM; 2.250
3022173225
Not Available
6
SHIM-VALVE LASH 2.675
3022173268
Not Available
6
VALVE LASH SHIM 2.150
3022173215
Not Available
6
SHIM-VALVE LASH 1.900
3022173190
Not Available
6
VALVE LASH SHIM; 2.325
3022173232
Not Available
6
VALVE LASH SHIM; 2.475
3022173248
Not Available
6
VALVE LASH SHIM; 2.00
3022173200
Not Available
6
VALVE LASH SHIM; 2.050
3022173205
Not Available
6
SHIM-VALVE LASH 2.850
3022173285
Not Available
6
SHIM-VALVE LASH 2.800
3022173280
Not Available
7
SHOULDER BOLT; 6 MM X 12 MM X 15 MM
7519165
$25,19 Unit Price incl. VAT
8
RETAINER VALVE
5136901
9999999
Not Available
9
VALVE SPRING SEAT WITH SEAL
3610212
3024576
Not Available
9
SEAT-W/SEAL VALVE SPRING
3610199
3024576
Not Available
10
SPRING-VALVE
7044024
7046204
$18,89 Unit Price incl. VAT
11
VALVE KEEPER
7081470
$9,44 Unit Price incl. VAT
12
CAMCHAIN GUIDE; FIXED
3022150
$26,24 Unit Price incl. VAT
13
CAM CHAIN TENSIONER GUIDE
3022151
$52,49 Unit Price incl. VAT
14
CAMCHAIN TENSIONER
3022152
$167,99 Unit Price incl. VAT
14
TENSIONER GASKET
5813449
$13,64 Unit Price incl. VAT
15
GUIDE CAMCHAIN FIXED COVER
3022153
$52,49 Unit Price incl. VAT
16
CAMSHAFT ROLLER CHAIN
3222185
9999999
Not Available
17
DRIVEN CAM SPROCKET
3222189
3225061
$68,24 Unit Price incl. VAT
18
HEX FLANGE SCREW; 6 MM X 1.0 MM X 10 MM
7519164
$7,34 Unit Price incl. VAT
19
BOLT-SHLDR M6X14X40
7519289
7520593
$9,44 Unit Price incl. VAT

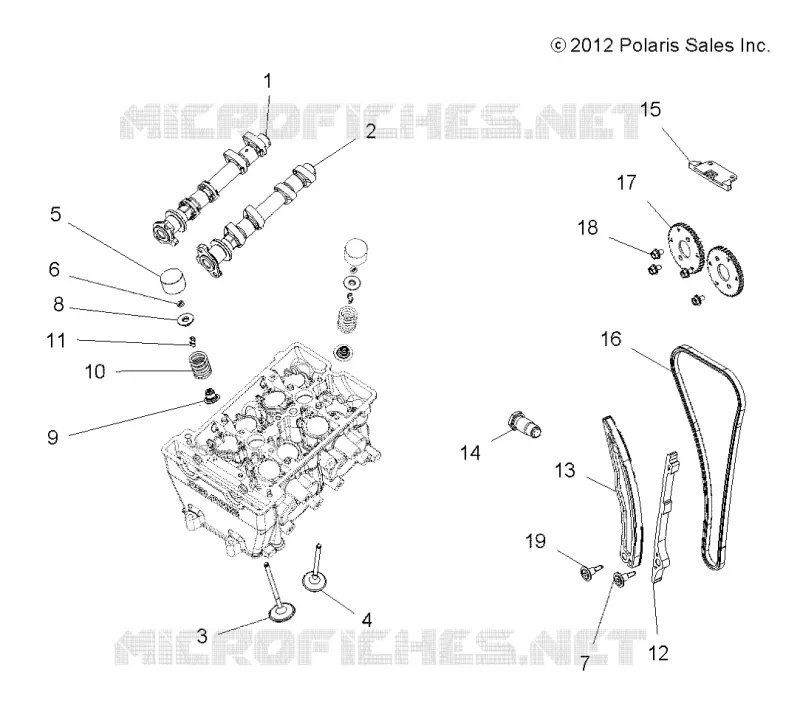

Find the detailed VALVES AND CAMSHAFTS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
