DRIVE TRAIN, CHAINCASE for POLARIS 600 PRO RMK 155 from 2012

CHASSIS, CLUTCH GUARD AND FOOTRESTS

DRIVE TRAIN, CLUTCH, PRIMARY

DRIVE TRAIN, CHAINCASE

1

OIL SEAL

3610030

$36,74 Unit Price incl. VAT

2

CHAINCASE; MACHINED; 191.26 MM

5136532

9999999

Not Available

3

VENT TUBE; .155 X .75; DIA

5334764

$62,99 Unit Price incl. VAT

4

CHAIN TIGHTENER ASSEMBLY

1332427

$135,44 Unit Price incl. VAT

5

NUT

7547017

$10,49 Unit Price incl. VAT

6

SCR-HH-M10X1.5X70 8.8 ZOD

7519166

9999999

Not Available

7

BALL BEARING #6205

3514309

3515910

$30,23 Unit Price incl. VAT

8

RETAINING RING

7718406

$11,54 Unit Price incl. VAT

9

SPROKET 20 TOOTH

3221096

$73,49 Unit Price incl. VAT

10

CHAINCASE COVER GASKET

5813295

$62,99 Unit Price incl. VAT

11

CHAINCASE SLEEVE

5137587

$13,64 Unit Price incl. VAT

12

CHAINCASE COVER ASSEMBLY; 191.26 MM

1332659

$220,49 Unit Price incl. VAT

13

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$4,19 Unit Price incl. VAT

14

BALL BEARING

3514643

$40,94 Unit Price incl. VAT

15

SLEEVE-SEAL

5136533

5140953

$47,24 Unit Price incl. VAT

16

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

17

HEX HEAD SCREW; 10 MM X 1.25 MM X 20 MM

7519004

$7,34 Unit Price incl. VAT

18

SPRKT-42T 3/4W LWT HYVO PM

3222192

$104,99 Unit Price incl. VAT

19

HYVO CHAIN

3221110

$262,49 Unit Price incl. VAT

20

DOWEL HOL M9X10(10)

7663007

$7,34 Unit Price incl. VAT

21

PLUG-MAGNETIC M14X1.25

7052458

7052674

$36,74 Unit Price incl. VAT

22

WASHER-THREAD SEAL;3/8-16-UNC

7556340

$6,29 Unit Price incl. VAT

23

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$13,64 Unit Price incl. VAT

24

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$3,14 Unit Price incl. VAT

25

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

26

NUT-HEX-M6X1.0 8 ZOD NYL

7547505

$4,19 Unit Price incl. VAT

27

SCR-RHCAR-M6X1.0X20 8.8 ZPC

7519338

$6,29 Unit Price incl. VAT

28

FUEL LINE; 3 MM X 7 MM

8450061600

Not Available

29

O-RING 20.30 MM X 2.62 MM

5413563

$3,14 Unit Price incl. VAT

30

ASM-STUD PLATE

1018042

9999999

Not Available

31

RIVET 4.8 MM

7661973

$2,09 Unit Price incl. VAT

32

WASHER-6.2X14.25X2 ZC

7556588

$4,19 Unit Price incl. VAT

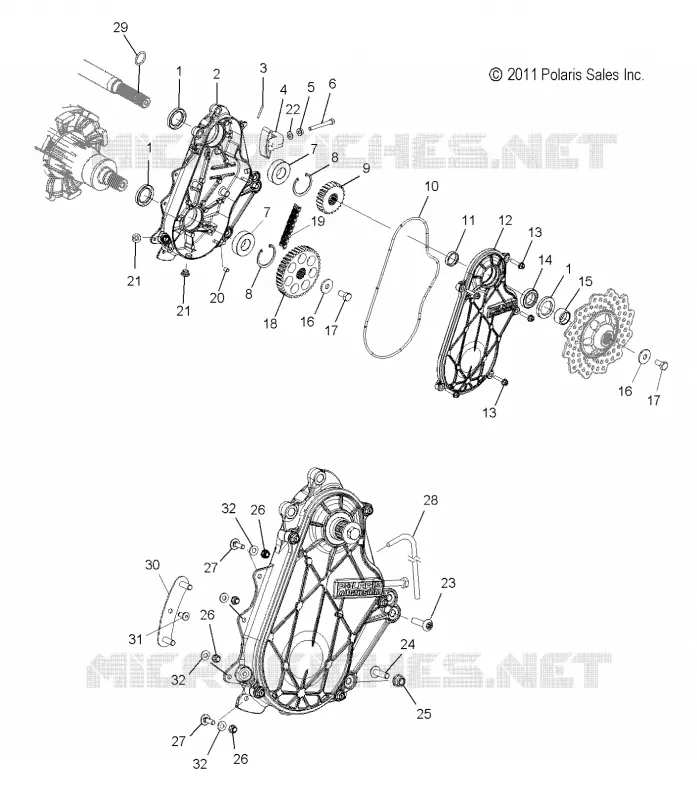

Find the detailed DRIVE TRAIN, CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
