1
Engine displacement
600
2
Year
2003
3
Trim
600 CLASSIC
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
WATER PUMP/OIL PUMP
by
CARBURETOR
CARBURETOR
15
16
17
18
19
20
21
22
23
-
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
48
49
-
ASM-CARB TM 38
1253445
9999999
Not Available
1
SCREW
3130951
$7,34 Unit Price incl. VAT
2
CAP-TOP
3130976
9999999
Not Available
3
GASKET
3130871
$36,74 Unit Price incl. VAT
4
SCREW
3130844
$7,34 Unit Price incl. VAT
5
WASHER PACKING
3130846
$9,44 Unit Price incl. VAT
6
CLIP
3130856
$15,74 Unit Price incl. VAT
7
RING
3130845
$18,89 Unit Price incl. VAT
8
PLATE
3130857
9999999
Not Available
9
E-RING
3130847
$18,89 Unit Price incl. VAT
10
RUBBER CAP
3130831
$13,64 Unit Price incl. VAT
11
GUIDE HOLDER
3130830
$62,99 Unit Price incl. VAT
12
SPRING
3130829
$26,24 Unit Price incl. VAT
13
PLUNGER ASSEMBLY
3130828
$68,24 Unit Price incl. VAT
14
VALVE PISTON 2.5
3130790
9999999
Not Available
15
NEEDLE JET
3131268
9999999
Not Available
16
PACKING
3130867
$10,49 Unit Price incl. VAT
17
E-RING
3130868
9999999
Not Available
18
PLATE
3130843
$18,89 Unit Price incl. VAT
19
LEVER ASM.
3130849
$120,74 Unit Price incl. VAT
19
LEVER ASM.
3130855
$120,74 Unit Price incl. VAT
20
RING
3130848
9999999
Not Available
21
SCREW
3130854
$6,29 Unit Price incl. VAT
22
SCREW
3130850
$9,44 Unit Price incl. VAT
23
SCREW
3130825
$6,29 Unit Price incl. VAT
24
FUNNEL ASSEMBLY
3131335
9999999
Not Available
25
O-RING LONG AIR FUNNEL
3131356
$31,49 Unit Price incl. VAT
26
PIN
3130808
9999999
Not Available
27
HEX HEAD MAIN JET
3130144
9999999
Not Available
28
SCREW-AIR
3131336
9999999
Not Available
29
SPRING
3131371
9999999
Not Available
30
WASHER
3131372
$10,49 Unit Price incl. VAT
31
O-RING
3130522
$10,49 Unit Price incl. VAT
32
FLOAT ASSEMBLY
3130859
$152,24 Unit Price incl. VAT
33
DRAIN BOLT
3131248
9999999
Not Available
34
O-RING
3130863
$4,19 Unit Price incl. VAT
35
SCREW
3130824
$6,29 Unit Price incl. VAT
36
FLOAT BODY
3130858
$188,99 Unit Price incl. VAT
37
O-RING
3130861
$20,99 Unit Price incl. VAT
38
SCREW
3130860
$15,74 Unit Price incl. VAT
39
JET PILOT #45(10)
3130068
$18,89 Unit Price incl. VAT
40
STARTER JET
3130768
$18,89 Unit Price incl. VAT
41
WASHER
3130837
$6,29 Unit Price incl. VAT
42
SPRING
3130836
9999999
Not Available
43
ADJUSTER
3130987
$47,24 Unit Price incl. VAT
44
CAP
3130986
$18,89 Unit Price incl. VAT
45
SCREW
3131010
$9,44 Unit Price incl. VAT
46
SENSOR ASSEMBLY
3131009
$503,99 Unit Price incl. VAT
47
CAP
3130479
$31,49 Unit Price incl. VAT
48
PACKING
3130835
$4,19 Unit Price incl. VAT
49
CHECK VALVE; 90 DEG
7051020
$68,24 Unit Price incl. VAT

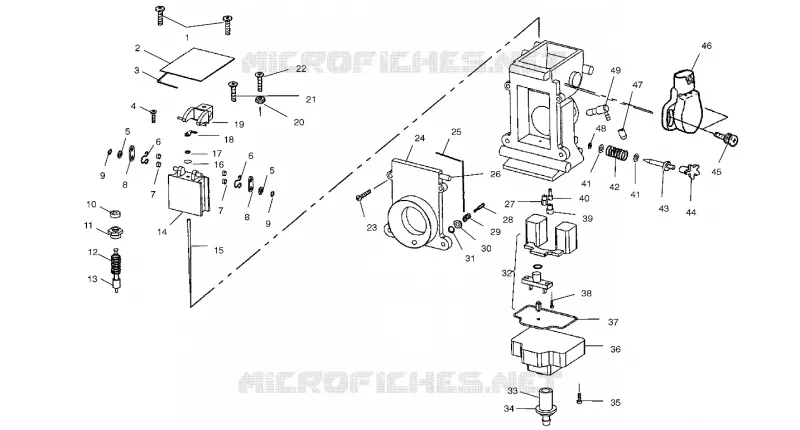

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
