1
Engine displacement
800
2
Year
2013
3
Trim
SPORTSMAN FOREST 800 6X6 - A13CF76FF
4
Parts Catalog
WIRE HARNESSES
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR PROP SHAFT
by
HEADLIGHTS
WIRE HARNESSES
1
2
3
3
3
3
3
3
4
5
6
7
8
9
10
11
12
12
13
14
14
1
MAIN HARNESS; 6X6; SPORTSMAN
2411621
9999999
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
FUSIBLE LINK KIT; 1.0 MM
2202670
$68,24 Unit Price incl. VAT
3
FUSIBLE LINK KIT; 0.8 MM
2202607
$73,49 Unit Price incl. VAT
3
CPS HARNESS KIT
2878077
$220,49 Unit Price incl. VAT
3
KIT-HARNESS T-BAP
2875542
2878494
$220,49 Unit Price incl. VAT
3
HARNESS KIT; ENGINE TEMP
2875543
$209,99 Unit Price incl. VAT
3
HARNESS
2203801
9999999
Not Available
4
HARNESS-WINCH PREWIRE
2412244
9999999
Not Available
5
RELAY
4011141
9999999
Not Available
6
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
7
ATC 20 AMP; FUSE
4011683
$18,89 Unit Price incl. VAT
8
ATC FUSE; 15 AMP
4011682
9999999
Not Available
9
FUSE-ATC 5 AMP
4011681
9999999
Not Available
10
SCREW
7512024
$9,44 Unit Price incl. VAT
11
BRKT-FUSE BLOCK
5250236
9999999
Not Available
12
SEALED CIRCUT BREAKER; 20 AMP
2410881
$141,74 Unit Price incl. VAT
13
DECAL-FUSE BLOCK
7171032
9999999
Not Available
14
FILTER CAPACITOR
4011441
$194,24 Unit Price incl. VAT

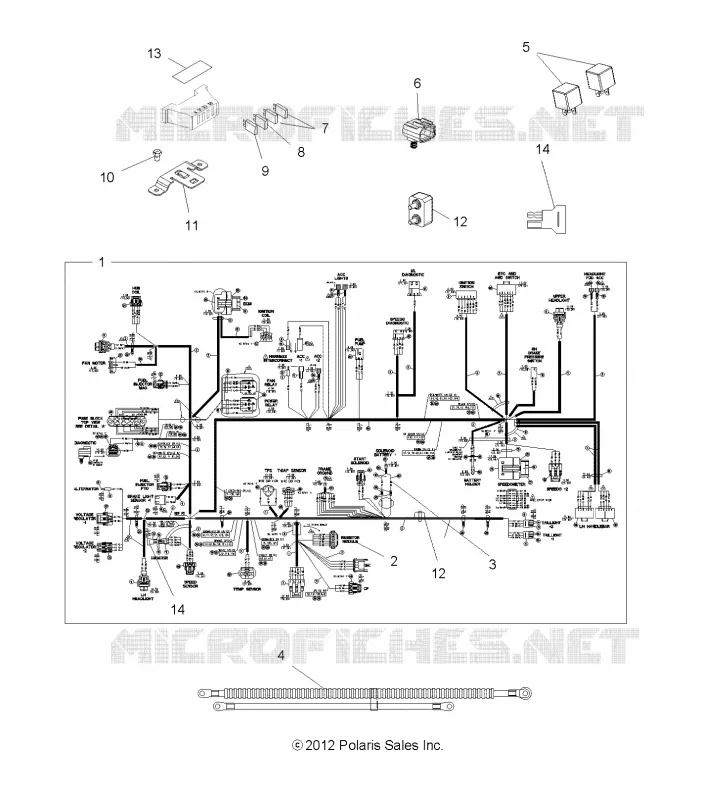

Find the detailed WIRE HARNESSES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
