1
Engine displacement
850
2
Year
2022
3
Trim
850 RMK KHAOS MATRYX SLASH 146
4
Parts Catalog
SUSPENSION, RAIL BEAMS, LH/RH
5
Parts Diagram
Parts Catalog
SUSPENSION, IFS SHOCKS MNTG.
by
SUSPENSION, REAR SHOCK TRACK, VELOCITY
SUSPENSION, RAIL BEAMS, LH/RH
1
2
3
4
5
5
6
6
6
6
7
7
8
9
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
1
RAIL TIP CAP
5452441
$26,24 Unit Price incl. VAT
2
SCR-TXTH-M6X1.0X25 8.8 ZPB
7520133
$6,29 Unit Price incl. VAT
3
WASHER
7556064
$9,44 Unit Price incl. VAT
4
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
5
NUT-M5X0.8 8.8 HX/FL NYLOC
7547427
$6,29 Unit Price incl. VAT
6
WASHER-M5.3X14X1.2 ZOD
7556470
$4,19 Unit Price incl. VAT
7
SCR-M5X0.8X40 8.8 TR/TX ZOD
7518951
$6,29 Unit Price incl. VAT
8
HOLLOW TALL BUMPER
5415327
$27,29 Unit Price incl. VAT
9
LINER-LOW PROFILE BUMPER
5451787
$12,59 Unit Price incl. VAT
10
ASM-RAIL BSC C-OVER 146 RH LMS
1544539630
Not Available
10
ASM-RAIL BSC COIL-OVER 146 RH
1544539067
Not Available
10
ASM-RAIL BSC C-OVER 146 LH ORG
1544538647
Not Available
10
ASM-RAIL BSC C-OVER 146 LH NAT
1544538309
Not Available
10
ASM-RAIL BSC C-OVER 146 LH SGR
1544538804
Not Available
10
ASM-RAIL BSC C-OVER 146 RH ORG
1544539647
Not Available
10
ASM-RAIL BSC C-OVER 146 RH SGR
1544539804
Not Available
10
ASM-RAIL BSC C-OVER 146 RH NAT
1544539309
Not Available
10
ASM-RAIL BSC COIL-OVER 146 LH
1544538067
Not Available
10
ASM-RAIL BSC C-OVER 146 LH LMS
1544538630
Not Available
11
KIT-HOLTZ SCRATCHER AXYS
2882028
2890644
$146,99 Unit Price incl. VAT
12
BUMPER-JOUNCE REAR;COIL-OVER
5522056
$26,24 Unit Price incl. VAT
13
BUMPER LINER
5432946
$19,94 Unit Price incl. VAT
14
HEX SCREW; 10 MM X 1.5 MM X 100 MM
7520083
$23,09 Unit Price incl. VAT
15
HEX NUT; 10 MM X 1.5 MM
7547707
$7,34 Unit Price incl. VAT
16
BLOCK-IDLER BOLT ADJ METRIC
5139435
$26,24 Unit Price incl. VAT
17
RIVET
7621501
$4,19 Unit Price incl. VAT
18
HIFAX-146 LWT BLK
5522388070
Not Available
19
SCR-M6X1.0X20 TR/TX/TAP ZOD
7518976
$6,29 Unit Price incl. VAT

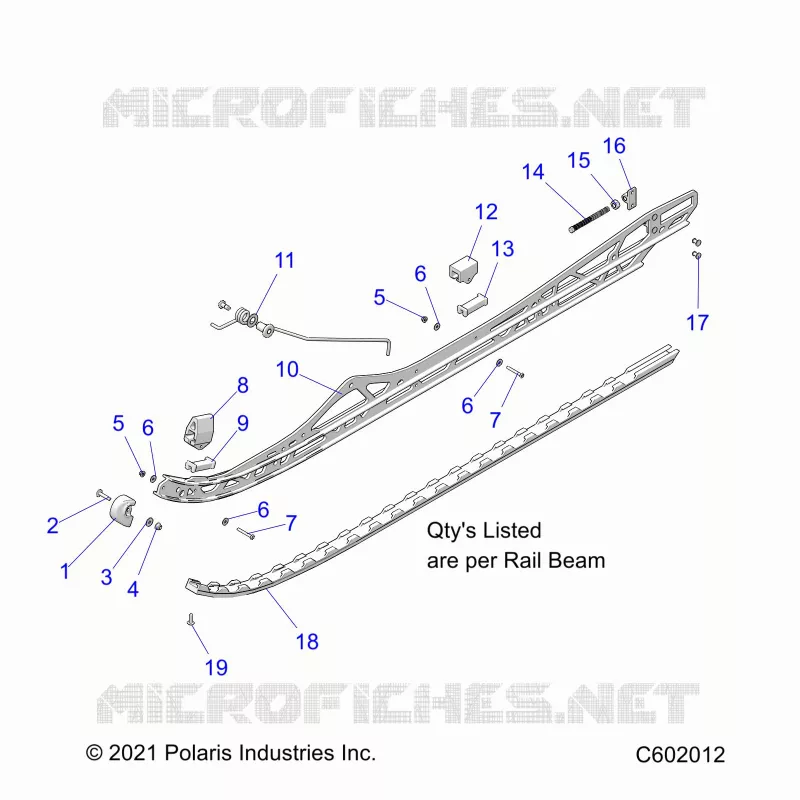

Find the detailed SUSPENSION, RAIL BEAMS, LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
