ENGINE, PISTON AND CRANKSHAFT for POLARIS 650 MATRYX VOYAGEUR 146 from 2022

ENGINE, PISTON AND CRANKSHAFT

-

K-CRANKSHAFT 1206303

2208740

2211504

$3 039,74 Unit Price incl. VAT

-

K-CON ROD ASM;74ST FC

2208792

$388,49 Unit Price incl. VAT

1

PISTON CIRCLIP 23 MM

3023343

$27,29 Unit Price incl. VAT

2

K-PISTON RING SNOW 650

2208749

$141,74 Unit Price incl. VAT

3

K-PISTON 650 SNOW

2208741

2212228

$386,39 Unit Price incl. VAT

4

WRENCH-8MMX10MM OPEN END

Not Available

5

NEEDLE BEARING; 23 X 28 X 26

3514909

$27,29 Unit Price incl. VAT

6

BALL BEARING; 40 X 80 X 30.2

3515006

$182,69 Unit Price incl. VAT

7

WOODRUFF KEY

7721117

$47,24 Unit Price incl. VAT

8

PTO BEARING; 49.5 X 80 X 46; REAR

3515157

$242,54 Unit Price incl. VAT

9

BALL BEARING; 40 X 80 X 18

3514389

3515831

$55,43 Unit Price incl. VAT

10

BEARING-22NDL 31X38X19 IKO

3514987

$80,84 Unit Price incl. VAT

10

WASHER-THRUST 31X51X1

5140944

$18,89 Unit Price incl. VAT

11

BEARING-BALL 40X80X18 SR

3514996

$149,09 Unit Price incl. VAT

12

CRANKWEB-74MM PTO

5142849

$666,74 Unit Price incl. VAT

13

GEAR-COLLAR PUMPDRIVE

5140946

5144456

$535,49 Unit Price incl. VAT

14

CRANKWEB-CTR 74MM PTO

5140942

$577,49 Unit Price incl. VAT

15

SEAL-OIL CTR KOK

5141297

5144433

$78,74 Unit Price incl. VAT

16

CRANKWEB-74MM MAG

5142850

$666,74 Unit Price incl. VAT

17

CRANKWEB-CTR 74MM MAG

5140941

$577,49 Unit Price incl. VAT

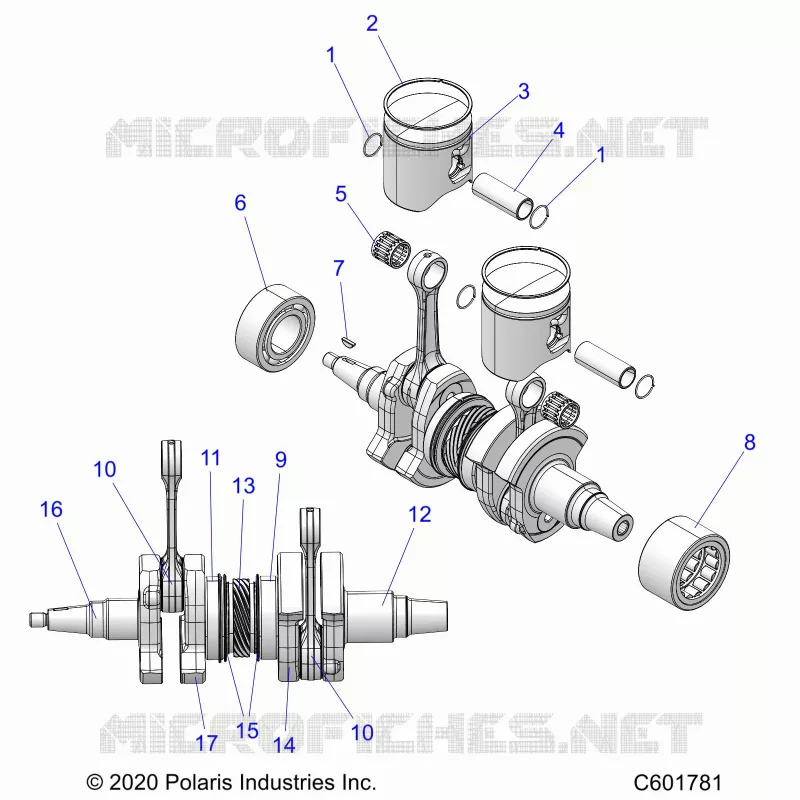

Find the detailed ENGINE, PISTON AND CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
