1
Engine displacement
800
2
Year
2005
3
Trim
800 FRONTIER TOURING
4
Parts Catalog
CYLINDER AND CYLINDER HEAD
5
Parts Diagram
Parts Catalog
CRANKSHAFT AND PISTON
by
INLET EXHAUST
CYLINDER AND CYLINDER HEAD
1
SCREW
7517277
$5,76 Unit Price incl. VAT
2
REED W/ GASKET ASSEMBLY
3021352
$62,99 Unit Price incl. VAT
3
BREATHER-VALVE CR
3021413
3021352
$62,99 Unit Price incl. VAT
4
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
5
ROCKER COVER-ASM
1201973
2203004
$157,49 Unit Price incl. VAT
6
HOLLOW O-RING SEAL; .125
5411862
$89,24 Unit Price incl. VAT
7
SCR-M12X1.75X180 HX/FL-CYLHEAD
7518240
9999999
Not Available
8
ASM-CYLINDER HEAD
1202706
9999999
Not Available
9
HEAD CYLINDER GASKET
5812193
9999999
Not Available
10
ASM-CYL 80MM HERMANN
1202503
9999999
Not Available
11
CYLINDER BASE GASKET
5811455
9999999
Not Available
12
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
13
COVER-THERMOSTAT W/O BYPASS
5631390
9999999
Not Available
14
O-RING LIP SEAL
5411521
9999999
Not Available
15
THERMOSTAT; 60 CELSIUS
7052224
9999999
Not Available
16
FITTING 1/4HOSE
7052156
9999999
Not Available

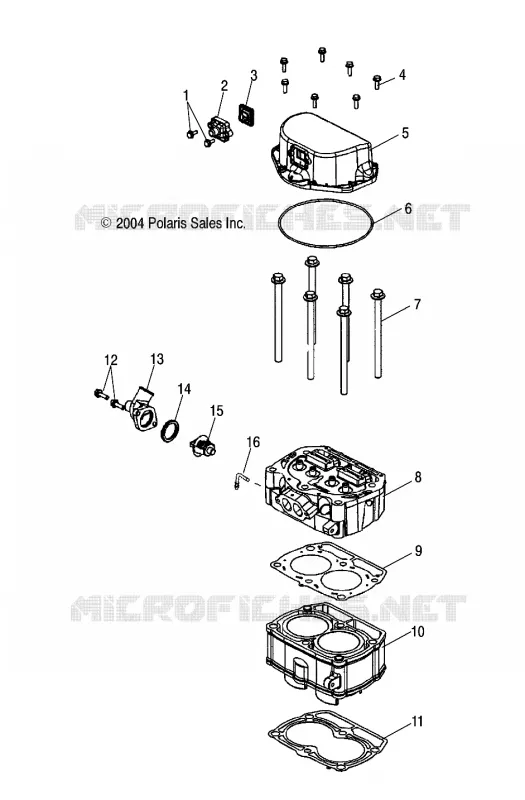

Find the detailed CYLINDER AND CYLINDER HEAD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
