SEAT ASM. REAR for POLARIS RANGER CREW XP 1000 HIGH LIFTER from 2022

SEAT ASM. REAR

1

ASM-SEAT BACK FULL HL BLK/G RS

2692244

$887,24 Unit Price incl. VAT

2

ASM-SEAT BTM 40 BLK/GR RED ST

2692242

$682,49 Unit Price incl. VAT

3

ASM-SEAT BTM 60 BLK/GR RED ST

2692237

$614,24 Unit Price incl. VAT

4

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

5

GROMMET

5439179

$12,59 Unit Price incl. VAT

6

PASSENGER SEAT BASE WELD; MATTE BLACK

1023099458

Not Available

7

BRKT-SEAT PIVOT;BLK

5263494458

Not Available

8

BUMPER SHORT RUBBER

5412067

$7,34 Unit Price incl. VAT

9

SEATBELT WASHER; RUBBER

5813829

$2,09 Unit Price incl. VAT

10

GAS SHOCK; 285 MM

7044799

7046186

$73,49 Unit Price incl. VAT

11

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

12

END BALL

7082301

7083089

$5,24 Unit Price incl. VAT

13

SCR-SHS-M10X1.5-M12X16 RIE

7519355

$19,94 Unit Price incl. VAT

14

SCR-HWH-M8X1.25X20 TAP/R ZPB

7519780

$9,44 Unit Price incl. VAT

15

NUT-HH M10X1.5 NYLOC ZOD

7547442

$7,34 Unit Price incl. VAT

16

SEAT LATCH PIN

5910404

$41,99 Unit Price incl. VAT

17

DOUBLE SEAT HINGE BRACKET

5259065

$19,94 Unit Price incl. VAT

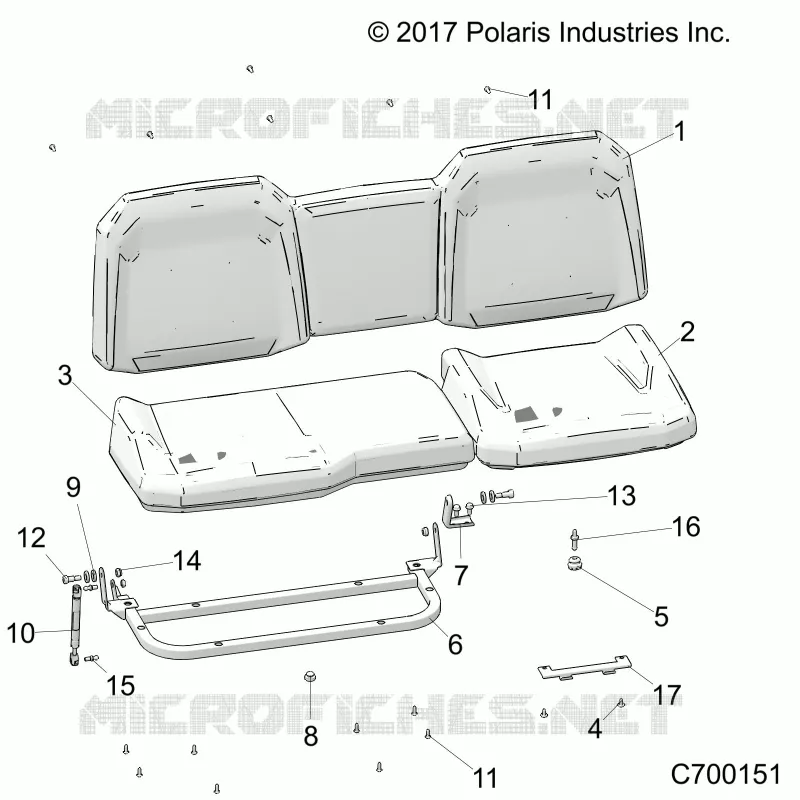

Find the detailed SEAT ASM. REAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
