DRIVE TRAIN, FRONT GEARCASE AND MOUNTING for POLARIS SPORTSMAN 800 HO EFI - A08MN76AF/AL/AQ/AR/AS/AT/AX from 2008

DRIVE TRAIN, FRONT GEARCASE AND MOUNTING

-

ASM-GEARCASE ADC

1332568

9999999

Not Available

1

OUTPUT COVER ASSEMBLY

3234588

9999999

Not Available

2

ASM-HUB OUTPUT FEMALE ADC

3234590

9999999

Not Available

3

CLUTCH ASSEMBLY

3234591

9999999

Not Available

4

THRUST BUTTON ASSEMBLY

3234594

9999999

Not Available

5

ASM-HUB OUTPUT MALE ADC

3234600

9999999

Not Available

6

PINION GEAR ASSEMBLY ADC

3234599

9999999

Not Available

7

INPUT COVER ASSEMBLY

3234748

$367,49 Unit Price incl. VAT

8

MAGNETIC DRAIN PLUG ASSEMBLY

3234412

$83,99 Unit Price incl. VAT

9

ASM-GEARCASE ADC

3234597

9999999

Not Available

10

ROLL CAGE ASSEMBLY; AL

3235263

9999999

Not Available

10

ROLL CAGE ASSEMBLY

3234466

9999999

Not Available

11

KIT-BOLT ADC

3234592

9999999

Not Available

12

SEAL REPAIR KIT

3234593

$136,49 Unit Price incl. VAT

13

ROLLER KIT

3234393

9999999

Not Available

14

BREATHER VENT TUBE

3234431

9999999

Not Available

15

ARMATURE PLATE

3234407

$209,99 Unit Price incl. VAT

16

SET-SCREW #10-14 W/NYLOK

3234408

$52,49 Unit Price incl. VAT

17

BEARING

3234390

$60,89 Unit Price incl. VAT

18

HOUSING-CLUTCH ADC

3234596

9999999

Not Available

19

PLUG-OIL FILL3/4-16 HOLLOW HD

3234414

3233942

$62,99 Unit Price incl. VAT

20

RING-RETAINING INTRNL 5000-218

3234416

$19,94 Unit Price incl. VAT

21

ASM-PUMP FWBD

3234429

9999999

Not Available

22

KIT-CAM & ARMATURE;FWBD

3234434

$272,99 Unit Price incl. VAT

23

RING GEAR SPACER

3234437

$36,74 Unit Price incl. VAT

24

SCREW

7517632

$10,49 Unit Price incl. VAT

25

SCREW

7512024

$9,44 Unit Price incl. VAT

26

CLAMP HOSE NYLON (10)

7080693

$10,49 Unit Price incl. VAT

27

FUEL LINE; 1/4 ID

84500031525

Not Available

28

HOSE CLAMP

7080307

$1,56 Unit Price incl. VAT

29

SPACER-.265 ID X .50 OD X .75

5437162

9999999

Not Available

30

SCR-1/4-20X1.50-HX/W-TAPR-GP-Y

7518306

9999999

Not Available

31

ASM-REMOTE RESFWBD

3234433

9999999

Not Available

32

THRUST PLATE DU

3234595

9999999

Not Available

33

CLIP-STRAIN RELIEF

3234601

9999999

Not Available

34

PISTON ASSEMBLY

3234589

9999999

Not Available

35

BRACKET-COVER ADC

3234603

9999999

Not Available

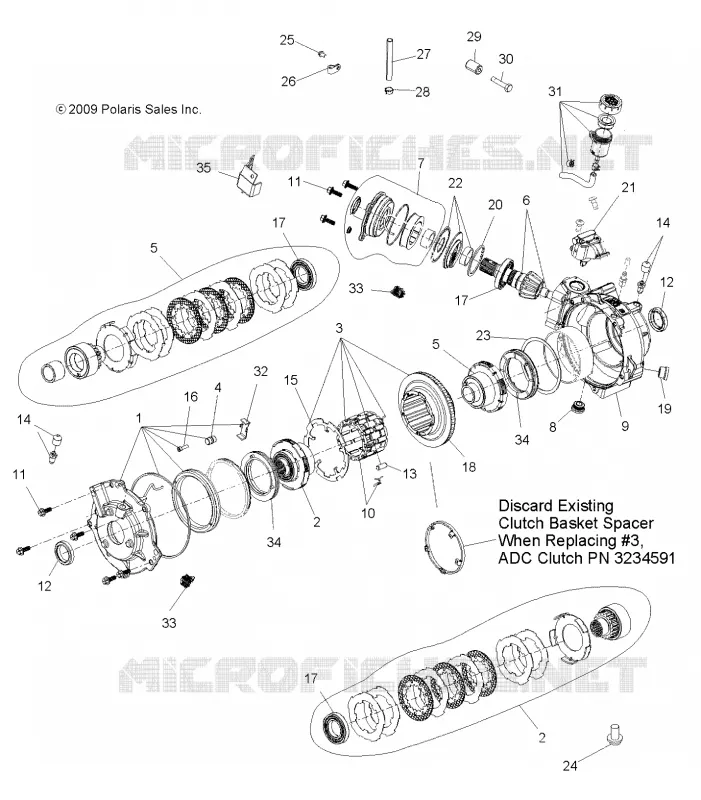

Find the detailed DRIVE TRAIN, FRONT GEARCASE AND MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
