ENGINE, CYLINDER HEAD AND VALVES for POLARIS RANGER 1000 PREMIUM from 2023

CYLINDER AND PISTON

ENGINE, CRANKCASE AND CRANKSHAFT

ENGINE, CYLINDER HEAD AND VALVES

1

ASM-CAMSHAFT 2CYL SOHC

1208702

1209092

$230,99 Unit Price incl. VAT

1

ASM-CAMSHAFT 2CYL SOHC

1209092

$230,99 Unit Price incl. VAT

1

ASM-CAMSHAFT 2CYL SOHC

1208709

1209092

$230,99 Unit Price incl. VAT

2

INTAKE VALVE; 47 MM

3022703

$83,99 Unit Price incl. VAT

3

EXHAUST VALVE; 38 MM

3022704

$125,99 Unit Price incl. VAT

4

HEAD ASSEMBLY; MACHINED; SOHC

3023450

$1 784,99 Unit Price incl. VAT

4

WRENCH-8MMX10MM OPEN END

Not Available

5

WRENCH-8MMX10MM OPEN END

Not Available

6

WRENCH-8MMX10MM OPEN END

Not Available

7

WRENCH-8MMX10MM OPEN END

Not Available

8

WRENCH-8MMX10MM OPEN END

Not Available

9

WRENCH-8MMX10MM OPEN END

Not Available

10

DWL-HOL M8X8

7662355

$19,94 Unit Price incl. VAT

11

PLUG-M10X1.0

7052718

$52,49 Unit Price incl. VAT

12

WSHR-10.3X16X1.5 CU

7557151

$6,29 Unit Price incl. VAT

13

VALVE KEEPER

3022759

$8,39 Unit Price incl. VAT

14

VALVE STEM SEAL; SPRING SEAT

3022758

3024537

$15,74 Unit Price incl. VAT

15

SCR-HXFL M6X1.0X35 10.9

7520689

$14,69 Unit Price incl. VAT

16

VALVE SPRING RETAINER

5139720

$13,64 Unit Price incl. VAT

17

VALVE SPRING

7044696

7046205

$16,79 Unit Price incl. VAT

18

VALVE TAPPET; GRADED; 3.8

5139458380

Not Available

18

VALVE TAPPET; GRADED; 3.5

5139458350

Not Available

18

GRADED VALVE TAPPET; 4.100

5139458410

Not Available

18

GRADED VALVE TAPPET; 4.075

5139458408

Not Available

18

VALVE TAPPET; GRADED 3.625

5139458362

Not Available

18

GRADED VALVE TAPPET; 4.000

5139458400

Not Available

18

GRADED VALVE TAPPET; 4.050

5139458405

Not Available

18

GRADED VALVE TAPPET; 4.275

5139458428

Not Available

18

GRADED VALVE TAPPET; 3.525

5139458352

Not Available

18

GRADED VALVE TAPPET; 3.700

5139458370

Not Available

18

GRADED VALVE TAPPET; 4.200

5139458420

Not Available

18

GRADED VALVE TAPPET; 4.175

5139458418

Not Available

18

GRADED VALVE TAPPET; 3.875

5139458388

Not Available

18

GRADED VALVE TAPPET; 4.225

5139458422

Not Available

18

GRADED VALVE TAPPET; 3.650

5139458365

Not Available

18

GRADED VALVE TAPPET; 3.275

5139458328

Not Available

18

GRADED VALVE TAPPET; 3.600

5139458360

Not Available

18

GRADED VALVE TAPPET; 3.350

5139458335

Not Available

18

VALVE TAPPET; GRADED; 3.450

5139458345

Not Available

18

GRADED VALVE TAPPET; 4.250

5139458425

Not Available

18

GRADED VALVE TAPPET; 3.325

5139458332

Not Available

18

GRADED VALVE TAPPET; 3.425

5139458342

Not Available

18

GRADED VALVE TAPPET; 3.850

5139458385

Not Available

18

GRADED VALVE TAPPET; 4.150

5139458415

Not Available

18

GRADED VALVE TAPPET; 3.400

5139458340

Not Available

18

GRADED VALVE TAPPET; 3.900

5139458390

Not Available

18

GRADED VALVE TAPPET; 3.250

5139458325

Not Available

18

GRADED VALVE TAPPET; 3.475

5139458348

Not Available

18

GRADED VALVE TAPPET; 3.300

5139458330

Not Available

18

GRADED VALVE TAPPET; 3.950

5139458395

Not Available

18

GRADED VALVE TAPPET; 3.550

5139458355

Not Available

18

GRADED VAVLE TAPPET; 3.775

5139458378

Not Available

18

VALVE TAPPET; GRADED; 4.025

5139458402

Not Available

18

GRADED VALVE TAPPET; 3.675

5139458368

Not Available

18

GRADED VALVE TAPPET; 3.925

5139458392

Not Available

18

GRADED VALVE TAPPET; 3.375

5139458338

Not Available

18

GRADED VALVE TAPPET; 3.225

5139458322

Not Available

18

GRADED VALVE TAPPET; 3.975

5139458398

Not Available

18

GRADED VALVE TAPPET; 3.725

5139458372

Not Available

18

GRADED VALVE TAPPET; 3.825

5139458382

Not Available

18

GRADED VALVE TAPPET; 3.575

5139458358

Not Available

18

GRADED VALVE TAPPET; 3.750

5139458375

Not Available

18

GRADED VALVE TAPPET; 4.125

5139458412

Not Available

19

SCR-HXFL M11X1.25X150 10.9 SEM

7520978

$41,99 Unit Price incl. VAT

20

SCREW

7519153

$10,49 Unit Price incl. VAT

21

SCR-M6X1.0X13 SL/HX/FL-Z BLEED

7520470

$9,44 Unit Price incl. VAT

22

FLAT WASHER

7555998

$2,09 Unit Price incl. VAT

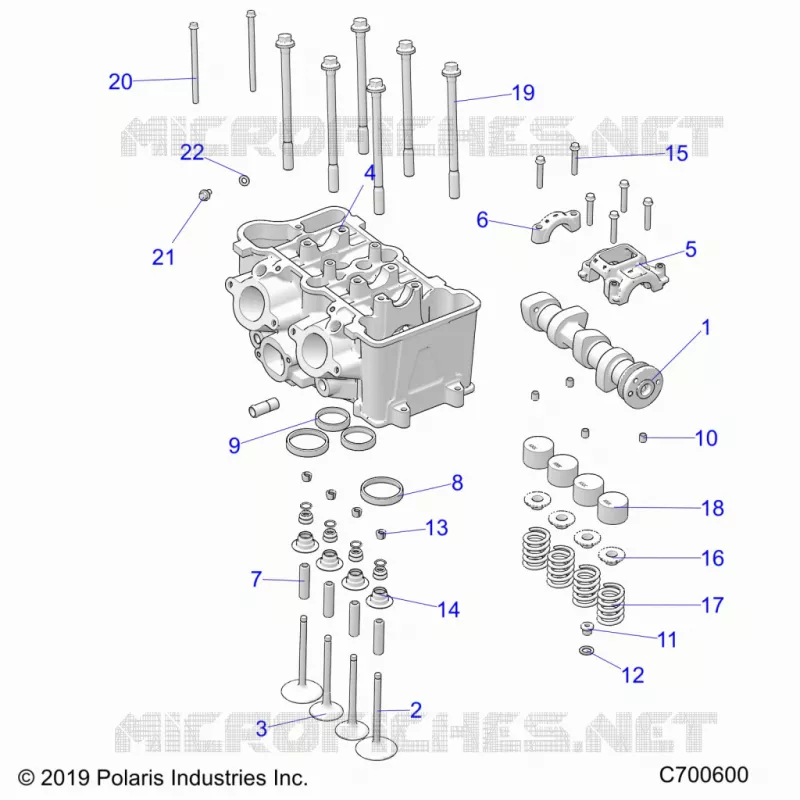

Find the detailed ENGINE, CYLINDER HEAD AND VALVES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
