1
Engine displacement
700
2
Year
2006
3
Trim
RANGER 6x6 EFI 700 - R06RF68AA
4
Parts Catalog
CRANKSHAFT
5
Parts Diagram
Parts Catalog
CRANKCASE
by
PISTON CYLINDER
CRANKSHAFT
1
2
3
4
5
6
7
8
9
10
11
12
13
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
3
3
4
5
1
JOURNAL BALL SHAFT BEARING
5132753
9999999
Not Available
2
BALANCE SHAFT
5132396
9999999
Not Available
3
WOODRUFF KEY #404
7721131
$41,99 Unit Price incl. VAT
4
KIT-GEAR SET
2202145
9999999
Not Available
5
WASHER RETAINING 8.5X28X3
7555982
7558715
$26,24 Unit Price incl. VAT
6
HEX FLANGE SCREW; 8 MM X 1.25 MM X 45 MM
7517865
$20,99 Unit Price incl. VAT
7
MAIN JOURNAL BEARING
3585704
$40,94 Unit Price incl. VAT
8
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT
9
KIT-CRANKSHAFT
2202858
9999999
Not Available
10
BALL BEARING
3514318
$74,54 Unit Price incl. VAT
11
BUSHING-35X44X3.00 MM-B (10)
7556194
$7,34 Unit Price incl. VAT
12
BEARING-BALL DP GRV 35X72X17
3514361
3585503
$54,59 Unit Price incl. VAT
13
FLANGE SEAL; 35 X 72 X 7
5412676
$73,49 Unit Price incl. VAT

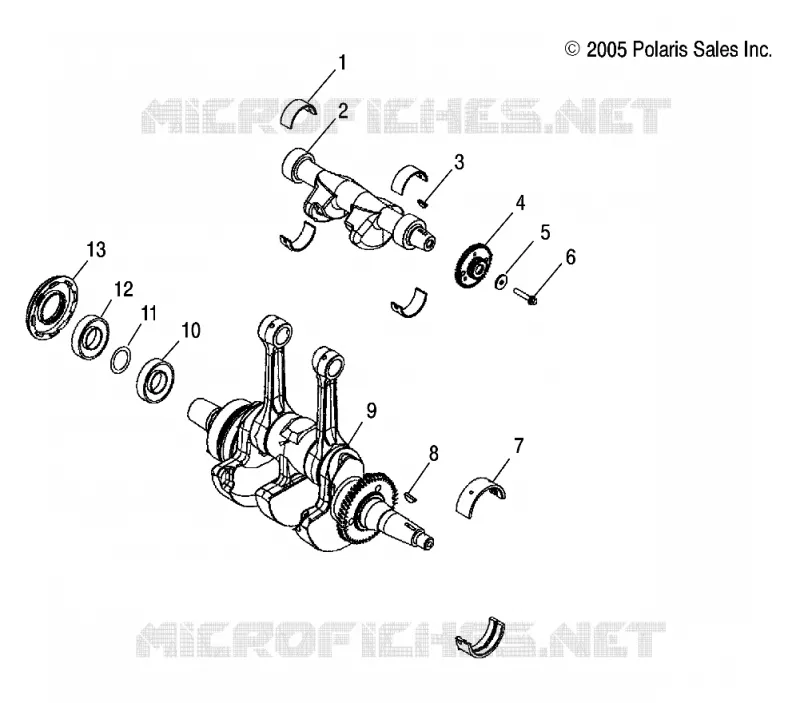

Find the detailed CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
