FRONT SUSPENSION for POLARIS OUTLAW 70 LE from 2023

FRONT SUSPENSION

1

WELD-CONTROL ARM;LH;M.BLK

1544271458

Not Available

2

ASM-PIVOT CAP;SEALED;SLIM;M10

1544437

$16,79 Unit Price incl. VAT

3

CAP-PIVOT SEAL;M10;SLIM

5143377

$12,59 Unit Price incl. VAT

4

O-RING

5415653

$2,09 Unit Price incl. VAT

5

ASM-PIVOT CAP;SEALED;M10;LONG

1544446

$29,39 Unit Price incl. VAT

6

CAP-PIVOT SEAL;M10;LONG

5143398

$12,59 Unit Price incl. VAT

7

CAP-LWR SUSPENSION ARM;DUST

5270776

$16,79 Unit Price incl. VAT

8

SEAL-O-RING 21.2X2.65

5416086

$2,09 Unit Price incl. VAT

9

STANDARD SUSPENSION BUSHING; 10 MM

5452233

$5,24 Unit Price incl. VAT

10

SUSPENSION ARM BUSHING; LOWER

5453651

$16,79 Unit Price incl. VAT

11

FITTING-LUB M6X1-STR/1792-Y

7082290

$13,64 Unit Price incl. VAT

12

SPACER PIVOT INNER FRT

7557181

$10,49 Unit Price incl. VAT

13

SPIRAL RING; 28 MM; STEEL

7710845

$6,81 Unit Price incl. VAT

14

WELD-CONTROL ARM;RH;M.BLK

1544272458

Not Available

15

BOLT-M10X1.5X75 HX HD FLG

7518473

$9,44 Unit Price incl. VAT

16

HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM

7518474

$9,44 Unit Price incl. VAT

17

HEX HEAD FLANGE BOLT; 10 MM X 45 MM

7518531

$9,44 Unit Price incl. VAT

18

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

19

SCR-HXFL-M10X1.25X110 10.9 ZY3

7521198

$9,44 Unit Price incl. VAT

20

ASM-SHOCK FR BLK

7045277458

Not Available

21

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

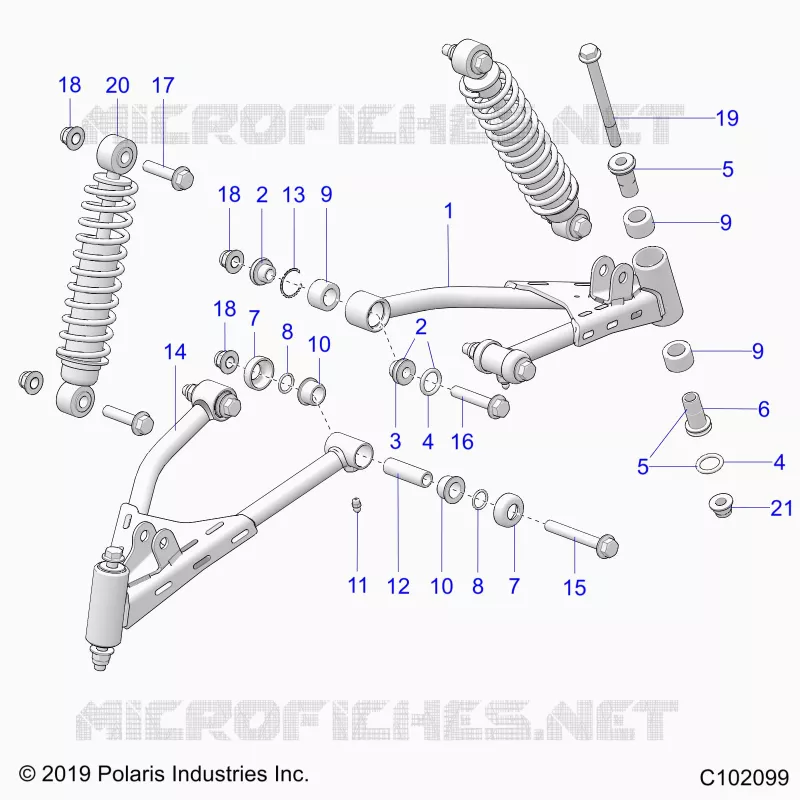

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
