Engine displacement
1000
2
Year
2018
3
Trim
BRUTUS HD HDPTO (R01) - D18B3/4PD1AJ
4
Parts Catalog
ENGINE, COOLING SYSTEM
5

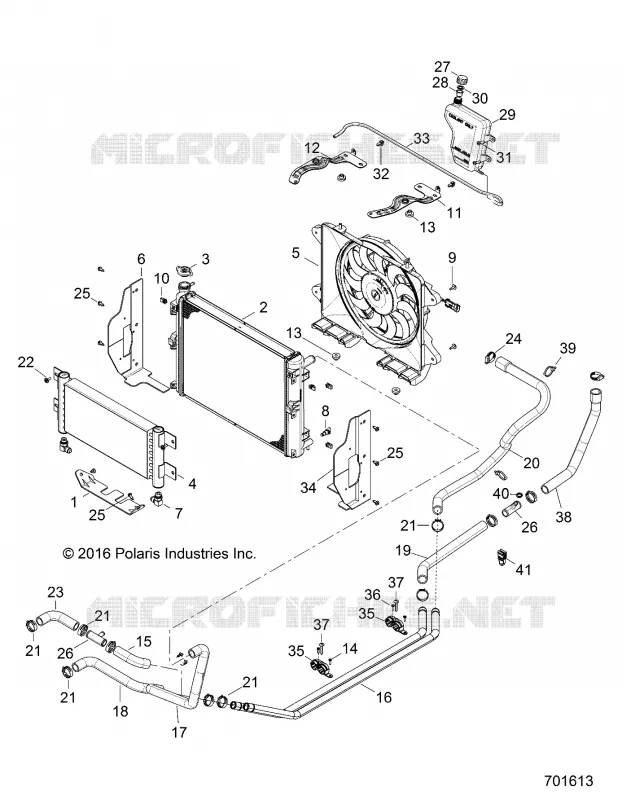

Parts Diagram
Parts Catalog
CAMSHAFT PUSH ROD
by
ENGINE, CYLINDER HEAD AND PRECOMBUSTION CHAMBER
ENGINE, COOLING SYSTEM
1
2
3
4
5
6
7
8
22
10
11
12
13
13
14
15
16
17
18
19
20
21
21
21
21
21
22
23
24
25
25
25
26
26
26
26
27
28
29
30
31
32
33
34
35
35
36
37
37
38
39
40
41
1
SHROUD-RADIATOR CENTER BLK
5439647070
Not Available
2
CORE RADIATOR
1240690
$1 454,24 Unit Price incl. VAT
3
CAP
1240692
1240694
$73,49 Unit Price incl. VAT
4
OIL COOLER; HYD
1240723
9999999
Not Available
5
FAN SHROUD ASSEMBLY
2412474
$624,74 Unit Price incl. VAT
6
SHROUD-RADIATOR FRONT RH BLK
5439646070
Not Available
7
FITTING-8 37DEGX-8 ORING;90DEG
3120080
9999999
Not Available
8
VALVE-RADIATOR CORE DRAIN
7052557
9999999
Not Available
9
BOLT-M6X20MM
7519584
9999999
Not Available
10
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
11
RADIATOR MOUNT BRACKET; LEFT; BLACK
5256596329
Not Available
12
RADIATOR MOUNT BRACKET; RIGHT; BLACK
5256597329
Not Available
13
GROMMET
7052028
$11,54 Unit Price incl. VAT
14
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
15
COOLANT TUBE; 1 IN
5141639
9999999
Not Available
16
COOLANT TUBE; 1 IN
5137818
$68,24 Unit Price incl. VAT
17
RADIATOR HOSE; UPPER
5414293
$83,99 Unit Price incl. VAT
18
HOSE-LOWER RAD
5414294
9999999
Not Available
19
ENGINE HOSE; DIESEL
5415076
$68,24 Unit Price incl. VAT
20
HOSE-ENG OUT DSL
5415454
9999999
Not Available
21
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
22
BOLT-M6X20MM
7519584
9999999
Not Available
23
HOSE-LOWER RAD
5414415
9999999
Not Available
24
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
25
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
26
TEE CONNECTOR; 1 X 1 X 0.5
7052530
$10,49 Unit Price incl. VAT
27
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
28
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
29
SURGE TANK
5439202
$178,49 Unit Price incl. VAT
30
GASKET
5810279
$4,19 Unit Price incl. VAT
31
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
32
CLIP
7670102
$4,19 Unit Price incl. VAT
33
FUEL LINE; 95 CM
845000395
Not Available
34
SHROUD-RADIATOR FRONT LH BLK
5439294070
Not Available
35
COOLANT TUBE BRACKET
5451221
$16,79 Unit Price incl. VAT
36
SCREW
7512026
$2,09 Unit Price incl. VAT
37
SCR-M6X1X40 TR/TX-M
7519001
$7,34 Unit Price incl. VAT
38
ENGINE HOSE BYPASS; DIESEL
5415078
$68,24 Unit Price incl. VAT
39
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
40
CLAMP-HOSE SPRING 20MM
7081719
$10,49 Unit Price incl. VAT
41
CABLE TIE STRAP WITH EDGE CLIP
7081808
$10,49 Unit Price incl. VAT
