1
Engine displacement
500
2
Year
2013
3
Trim
SPORTSMAN FOREST TRACTOR 500 - A13MN50ET/EX
4
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
HEADLIGHTS
DRIVE TRAIN, SECONDARY CLUTCH
1
1
2
3
4
5
6
7
7
8
9
10
11
12
12
13
14
15
16
17
1
2
2
3
3
3
3
4
4
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
1
ASM-CLUTCH DRVN EBS W/Y
1322681
9999999
Not Available
2
WASHER .906 X 1.38 X .060 IN
7556120
$2,09 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
4
BOLT
7515327
$10,49 Unit Price incl. VAT
5
DOMED WASHER; SMALL
5250562
$4,19 Unit Price incl. VAT
6
ORV DRIVE BELT; FOR EBS CLUTCH
3211113
$128,09 Unit Price incl. VAT
7
RETAINING RING
7710448
$5,76 Unit Price incl. VAT
8
SPACER .020
5210752
$3,14 Unit Price incl. VAT
9
RAMP STA.BRAKE MACH
5131674
9999999
Not Available
10
SPRING; WHITE/YELLOW
7041635
9999999
Not Available
11
WASHER
5211115
$7,34 Unit Price incl. VAT
12
BUSHING MOVEABLE 1 IN
3576511
$52,49 Unit Price incl. VAT
13
BEARING
3585710
9999999
Not Available
14
SPECIAL SCREW
7517323
$25,19 Unit Price incl. VAT
15
TAPER ROLLER
1321977
9999999
Not Available
16
WASHER-1.39X2.50X.030 PTFE
7556203
9999999
Not Available
17
PLATE-CLUTCH DRIVEN EBS STAMP
5247804
9999999
Not Available

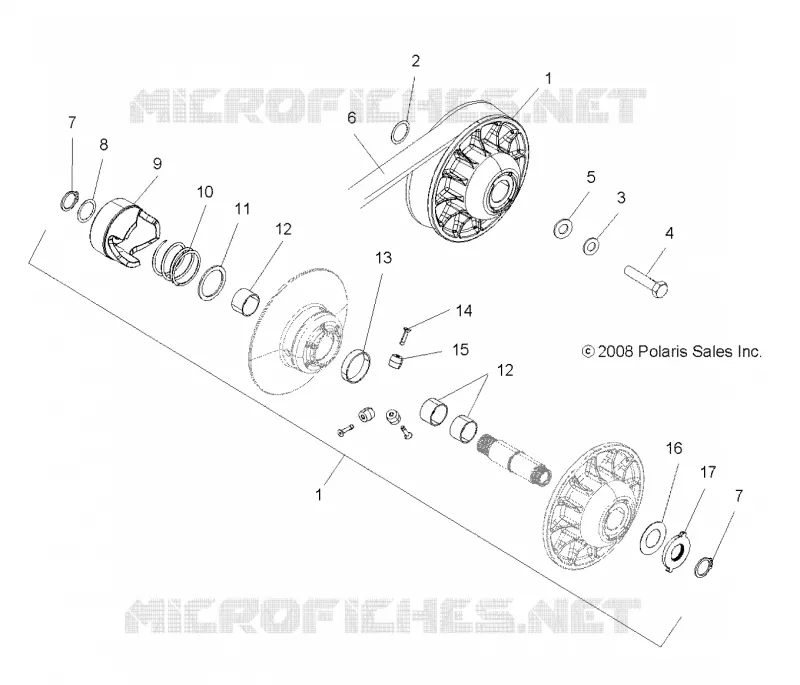

Find the detailed DRIVE TRAIN, SECONDARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
