Engine displacement
500
2
Year
2002
3
Trim
MAGNUM 500 - A02CD50AA
4
Parts Catalog
FRONT BRAKE
5
Parts Diagram
Parts Catalog
CONTROLS
by
REAR BRAKE
FRONT BRAKE
-
CALIPER ASM.BRAKE;RH;1.187;9"
1910550
9999999
Not Available
-
CALIPER ASM.BRAKE;LH;1.187;9"
1910549
9999999
Not Available
1
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
2
BRAKE BOOT KIT; FRONT
1930642
$20,99 Unit Price incl. VAT
2
CALIPER-BRAKE RH 1-3/16(MACH)
5133408
9990005
Not Available
2
CALIPER-BRAKE LH 1-3/16 (MACH)
5133407
9990005
Not Available
3
BOOT; PIN SEAL
5410494
5412506
$6,29 Unit Price incl. VAT
4
PISTON AND SEAL KIT
1930665
$104,99 Unit Price incl. VAT
5
SQUARE MOLDED RING; .094
5410779
$19,94 Unit Price incl. VAT
6
SQUARE MOLDED RING; .103 X .134
5410780
$19,94 Unit Price incl. VAT
7
PISTON-BRAKE LONG
5132294
1930665
$104,99 Unit Price incl. VAT
8
FRONT AFT BRAKE PADS KIT
2201398
2202412
$98,16 Unit Price incl. VAT
9
MOUNT ASM CALIPER
1910411
1910513
$99,74 Unit Price incl. VAT
10
BOOT; BUSHING
5410495
5412505
$6,29 Unit Price incl. VAT
11
BLEEDER SCREW
7080352
$5,76 Unit Price incl. VAT

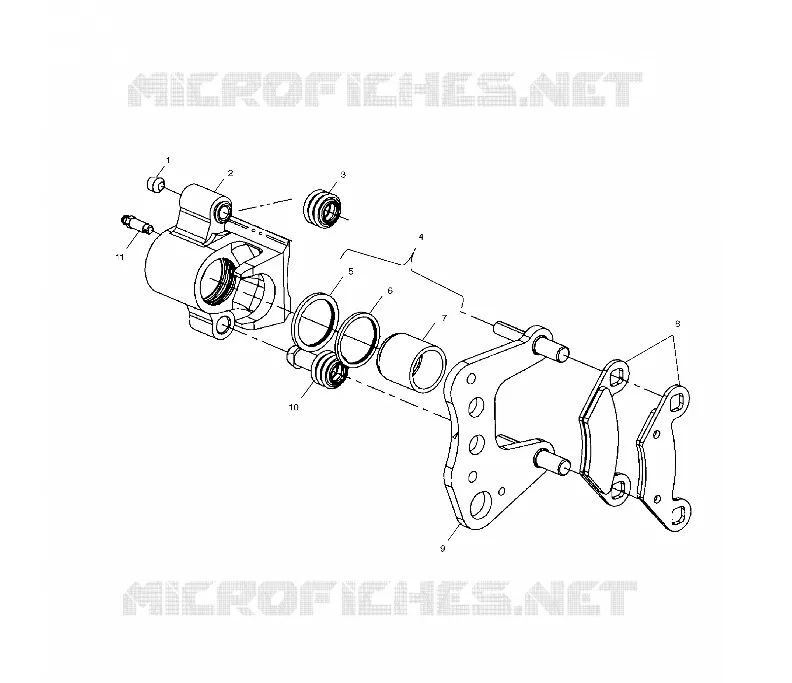

Find the detailed FRONT BRAKE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
