GEARCASE (CASES AND SNORKEL) XPLORER 500 W97CD50A (4941354135C012)
5
Parts Diagram
Parts Catalog
FRONT HOUSING XPLORER 500 W97CD50A (4941354135C011)
by
CRANKSHAFT AND PISTON XPLORER 500 W97CD50A (4941354135D005)
GEARCASE (CASES AND SNORKEL) XPLORER 500 W97CD50A (4941354135C012)
1
1
2
3
4
4
5
6
7
8
14
14
10
11
12
13
14
15
16
17
18
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
1
SEAL
3233256
3233878
$57,74 Unit Price incl. VAT
2
SCREW
3233252
$9,44 Unit Price incl. VAT
3
SCREW
3233026
9999999
Not Available
4
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
5
GEARCASE LH
3233245
Not Available
6
PIN; DOWEL
3233247
9999999
Not Available
7
VENT
3233037
9999999
Not Available
8
DIPSTICK ASM.
3233443
9999999
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
BOLT
3233442
9999999
Not Available
11
WASHER
3233352
9999999
Not Available
12
GEAR 31T (SNORKEL)
3233299
Not Available
13
SPACER SNORKEL
3233445
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHAFT SNORKEL
3233446
9999999
Not Available
16
O-RING
3233302
9999999
Not Available
17
SNORKEL
3233303
9999999
Not Available
18
BALL BEARING
3233305
$54,59 Unit Price incl. VAT
19
SPACER
3233355
9999999
Not Available
19
SPACER
3233356
9999999
Not Available
19
SPACER
3233357
$36,74 Unit Price incl. VAT
19
SPACER
3233353
9999999
Not Available
19
SPACER
3233354
9999999
Not Available
20
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
21
BOLT LOCK SNORKEL GEAR
3233444
9999999
Not Available
22
BOLT
3233351
9999999
Not Available
23
NUT FLEXLOCK
3233291
9999999
Not Available
24
BUSHING
3233292
9999999
Not Available
25
SEAL
3233293
9999999
Not Available
26
PLATE COVER
3233294
9999999
Not Available
27
WASHER LOCK
3233295
9999999
Not Available
28
SCREW
3233296
9999999
Not Available
29
PLUG DRAIN
3233253
9999999
Not Available
30
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
31
GEARCASE;RH;TAPPED
3233441
9999999
Not Available

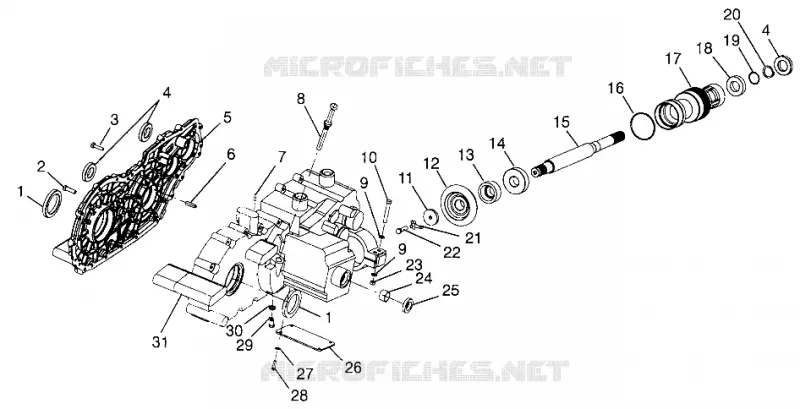

Find the detailed GEARCASE (CASES AND SNORKEL) XPLORER 500 W97CD50A (4941354135C012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
