Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ
4
Parts Catalog
FRONT BUMPER AND MOUNTING
5
Parts Diagram
Parts Catalog
TORSION BAR
by
CABIN
FRONT BUMPER AND MOUNTING
1
2
2
2
2
3
3
4
5
6
6
6
6
7
8
9
10
10
11
12
13
14
15
16
16
17
17
1
FRONT BUMPER ASSEMBLY; GLOSS BLACK
2633527070
Not Available
2
RIGHT SUPPORT RACK; MEDIUM GLOSS BLACK
1014592067
Not Available
2
SUPPORT RACK; LEFT; MEDIUM GLOSS BLACK
1014591067
Not Available
3
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
4
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
5
WELD-BRUSHGUARD BLK
1015033067
Not Available
6
RADIATOR SHIELD; SIDE; LEFT
5434314
9999999
Not Available
6
RADIATOR SHIELD; RIGHT
5434315
9999999
Not Available
7
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
8
RUBBER GROMMET; MOUNT; 25 IN.
5412504
$7,34 Unit Price incl. VAT
9
RADIATOR COVER; MESH
5435046
9999999
Not Available
10
DECAL-REFLECTOR AMBER LH
7175490
9999999
Not Available
10
DECAL-REFLECTOR AMBER RH
7175491
9999999
Not Available
11
BRUSH GUARD GRILL; MEDIUM GLOSS BLACK
5247507067
Not Available
12
SCR-#8X1 PN-PH H/L-Y
7518046
9999999
Not Available
13
BUMPER PANEL; FRONT; GLOSS BLACK
5435357070
Not Available
14
SCR-5/16-18X3/4 HX/W-TAP/R-M
7518383
$7,34 Unit Price incl. VAT
15
BOLT-5/16-18X2.25 FLG TAP/R-M
7518382
9999999
Not Available
16
WASHER-.327X.875X.090 FL-M
7556341
$3,14 Unit Price incl. VAT
17
SCREW
7515399
9999999
Not Available

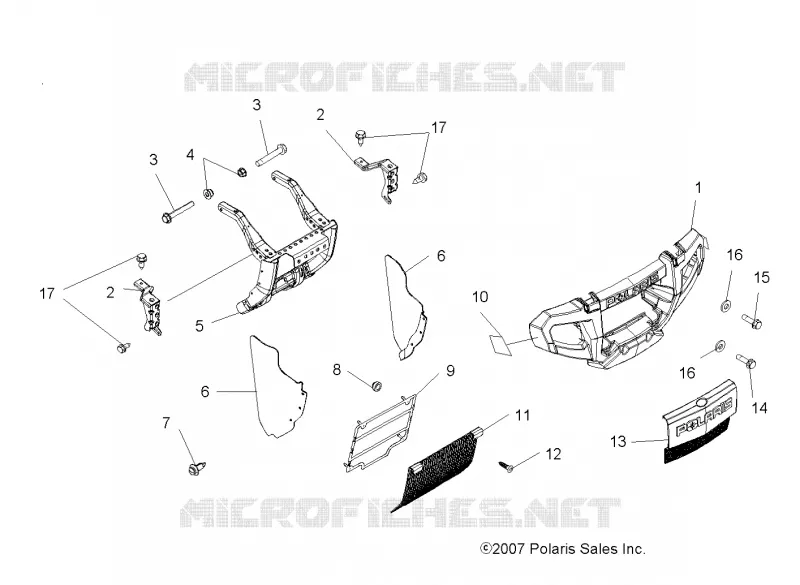

Find the detailed FRONT BUMPER AND MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ
