1
Engine displacement
1000
2
Year
2022
3
Trim
GENERAL XP 4 1000 DELUXE
4
Parts Catalog
ENGINE, AIR INTAKE MANIFOLD, THROTTLE BODY, FUEL RAIL
5
Parts Diagram
Parts Catalog
ELECTRICAL, WIRE HARNESS
by
ENGINE, AIR INTAKE SYSTEM
ENGINE, AIR INTAKE MANIFOLD, THROTTLE BODY, FUEL RAIL
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
FUEL RAIL
2521886
$314,99 Unit Price incl. VAT
2
ELEC THROTTLE CONTROL THROTTLE 46MM
1204455
$997,49 Unit Price incl. VAT
3
MANIFOLD-INTAKE COMPOS;EVAP;19
1205892
$430,49 Unit Price incl. VAT
3
INTAKE MANIFOLD
1205891
$383,24 Unit Price incl. VAT
4
TMAP SENSOR
2411528
$178,49 Unit Price incl. VAT
5
FUEL INJECTOR
2521387
$230,99 Unit Price incl. VAT
6
CLIP-INTAKE ROUTING
5258229
$7,34 Unit Price incl. VAT
7
SCR-1/4X2 HI/LO-PH-PN TRX-M
7518377
$9,44 Unit Price incl. VAT
8
SCR-TXWH-6MMX20MM DELTA PT CLR
7520922
$13,64 Unit Price incl. VAT
9
SCREW-PLASTITE 4.5MM
7519933
$7,34 Unit Price incl. VAT
10
SCR-PLASTITE 5.0MMX20-PN-T25
7519952
$7,34 Unit Price incl. VAT
11
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
12
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
13
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
14
COMPRESSION LIMITER
5138678
$68,24 Unit Price incl. VAT
15
GASKET-ETC EN.0113664
5813964
$25,19 Unit Price incl. VAT
16
GROMMET-LX.0113665
5813965
$36,74 Unit Price incl. VAT

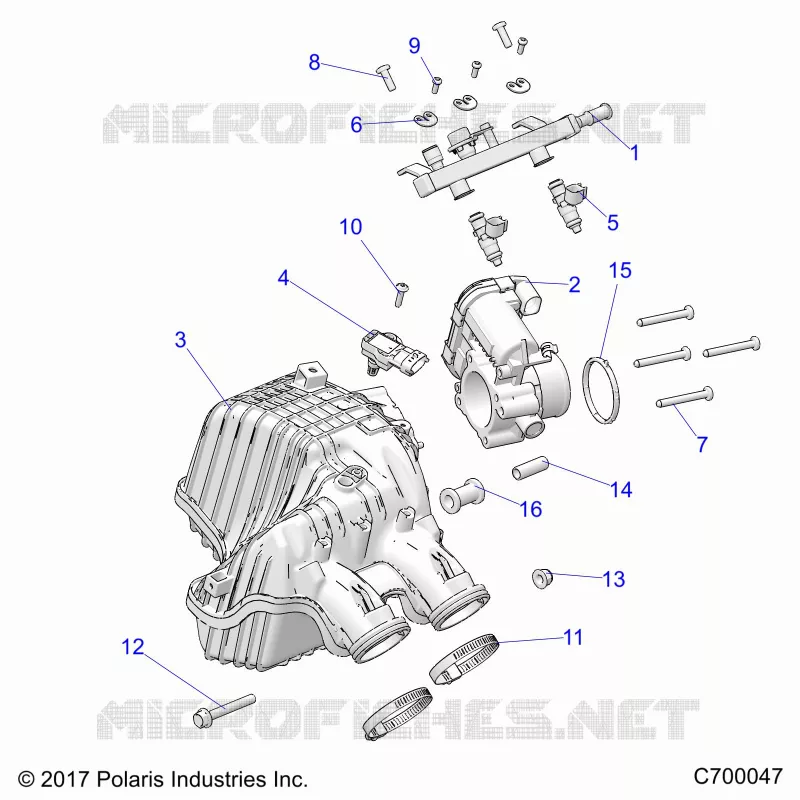

Find the detailed ENGINE, AIR INTAKE MANIFOLD, THROTTLE BODY, FUEL RAIL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
