FRONT SUSPENSION ASM. for POLARIS SLINGSHOT SL from 2024

FRONT SUSPENSION ASM.

1

ASM-ARM CONTROL UPPER LH

1025377

$435,74 Unit Price incl. VAT

1

ASM-ARM CONTROL UPPER RH

1025378

$435,74 Unit Price incl. VAT

2

ASM-ARM CONTROL LOWER RH

1025382

$482,99 Unit Price incl. VAT

2

ASM-ARM CONTROL LOWER LH

1025381

$482,99 Unit Price incl. VAT

3

MOUNT-CABLE

5258502

$62,99 Unit Price incl. VAT

4

BALL-JOINT TAPER S24MM

7061324

$157,49 Unit Price incl. VAT

5

RETAINING RING

7710716

$15,74 Unit Price incl. VAT

6

BUSHING-CONTROL ARM;ALUM

5417157

$73,49 Unit Price incl. VAT

7

SCREW

7517704

$13,64 Unit Price incl. VAT

8

MOUNT-BRAKE LINE

5258501

$9,44 Unit Price incl. VAT

9

CLEVIS-FRONT SHOCK LH

5261010

$52,49 Unit Price incl. VAT

9

CLEVIS-FRONT SHOCK RH

5261634

$52,49 Unit Price incl. VAT

10

TAPERED BALL JOINT; LOWER

7061202

$104,99 Unit Price incl. VAT

11

BOLT M12 X 40 SPROCKET

7518878

$8,39 Unit Price incl. VAT

12

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

13

SCR-HXFL-M10X1.5X55 10.9 ZFB

752133355

Not Available

14

ASM-LINK STABILIZER BAR LH

1544823

$188,99 Unit Price incl. VAT

14

ASM-LINK STABILIZER BAR RH

1544824

$188,99 Unit Price incl. VAT

15

HUB; FRONT

3515108

$293,99 Unit Price incl. VAT

16

KNUCKLE RIGHT

5139940

$614,24 Unit Price incl. VAT

16

KNUCKLE LEFT

5139939

$614,24 Unit Price incl. VAT

17

ALIGNMENT SHIM; 1 MM; ALUMINUM

5260616

$9,44 Unit Price incl. VAT

18

ALIGNMENT SHIM; 10 MM; ALUMINUM

5262689

$68,24 Unit Price incl. VAT

19

ALIGNMENT SHIM; 20 MM; ALUMINUM

5262690

$68,24 Unit Price incl. VAT

20

BAR-STABILIZER

5345462

$467,24 Unit Price incl. VAT

21

BUSHING-STABILIZER BAR

5458673

$13,64 Unit Price incl. VAT

22

BRKT-CAP STABILIZER BAR

5639273

$20,99 Unit Price incl. VAT

23

HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM

7518644

$9,44 Unit Price incl. VAT

24

SCREW 10 MMX 1.5 MM X 60 MM

7518941

$7,34 Unit Price incl. VAT

25

HEX FLANGE SCREW 12 MM X 1.25 MM X 50 MM

7520003

$41,99 Unit Price incl. VAT

26

SCR-HXFL-M8X1.25X45 10.9 ZFB

752133245

Not Available

27

NUT 12MM X 1.5MM

7547334

$9,44 Unit Price incl. VAT

28

HEX NUT; 10 MM X 1.5 MM

7547746

$5,24 Unit Price incl. VAT

29

RETAINER SPRING

7044246

$52,49 Unit Price incl. VAT

30

SPR-30.1N 301FL 60-60ID TSV

7045001402

Not Available

31

SHOCK-FRONT

7045003

$188,99 Unit Price incl. VAT

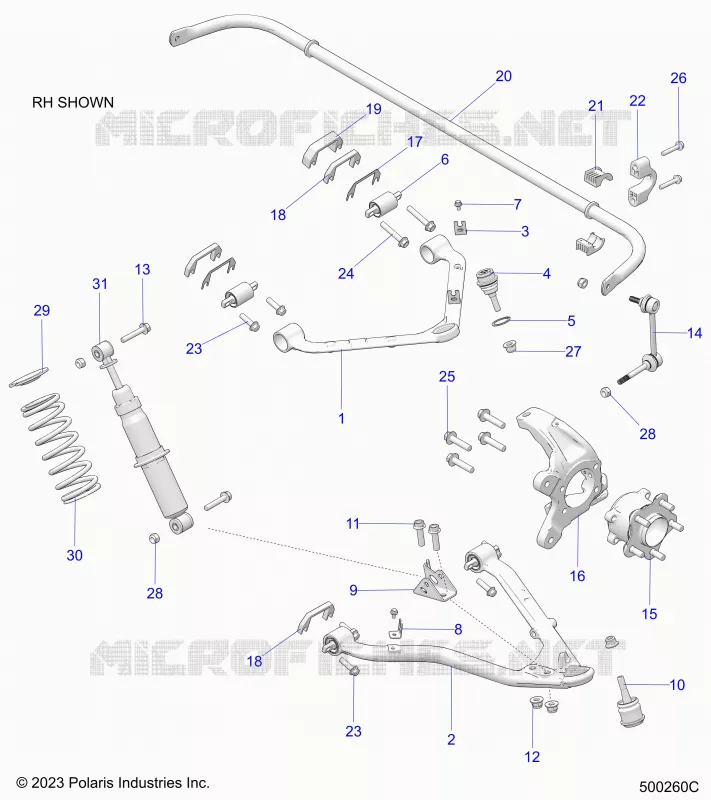

Find the detailed FRONT SUSPENSION ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
