1
Engine displacement
autre
2
Year
1997
3
Trim
EURO ULTRA - E976778
4
Parts Catalog
ENGINE MOUNTING ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805C002)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805C001)
by
CYLINDER ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805C007)
ENGINE MOUNTING ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805C002)
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
16
17
17
17
17
18
18
19
20
21
22
23
24
25
25
26
27
27
28
29
30
31
31
31
32
32
33
34
35
35
36
37
38
39
40
41
42
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
16
17
17
17
17
18
18
19
20
21
22
23
24
25
25
26
27
27
28
29
30
31
31
31
32
32
33
34
35
35
36
37
38
39
40
41
42
1
SCREW
7512595
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
CABLE-THROTTLE W/OIL
7080597
9999999
Not Available
8
TUBING CONVOLUTED
5521147
Not Available
9
SPARK PLUG
3070165
$7,34 Unit Price incl. VAT
10
BRKT HDWE MT. BLK.
5241179067
Not Available
11
HEX NUT
7542105
$7,34 Unit Price incl. VAT
12
WASHER
7552604
$3,14 Unit Price incl. VAT
13
ENG.(S.B.)EC68PL-01 [No Longer Available] (SKS)
3085195
Not Available
14
RIVET(10)
7621233
9999999
Not Available
15
STRAP GND (IGN.COIL)
5211663
9999999
Not Available
16
VALVE;FUEL SHUTOFF
7051016
9999999
Not Available
17
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
18
FUEL LINE; 600 CM
8450040600
Not Available
19
FUEL FILTER
2530008
9999999
Not Available
20
FUEL LINE 5 FT. Substituted by 8450044-153
8450044156
Not Available
21
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
22
MOUNT ENG.HARDWARE
5432094
9999999
Not Available
23
RIVET(50)
7621234
9999999
Not Available
24
DECAL FUEL SHUT-OFF
7073869
Not Available
25
MOUNT ENGINE
5410390
9999999
Not Available
26
SPACER (MTR.MT.)
5332778
9999999
Not Available
27
WASHER
7555740
$3,14 Unit Price incl. VAT
28
SCREW
7512530
$10,49 Unit Price incl. VAT
29
HANDLE RECOIL
5431499
9999999
Not Available
30
PLATE LH ENGINE
5241989
Not Available
31
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
32
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
33
ENGINE MOUNT
3110062
9999999
Not Available
34
STOP TORQUE COARSE
3110056
Not Available
35
NUT HEX
7542414
$9,44 Unit Price incl. VAT
36
RIVET
7661637
$2,09 Unit Price incl. VAT
37
LIMITERTORQUE
1012277067
Not Available
38
WASHER FLAT(10)
7555915
$6,29 Unit Price incl. VAT
39
BOLT
7512575
9999999
Not Available
40
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
41
PLATE RH ENGINE
5241990
Not Available
42
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT

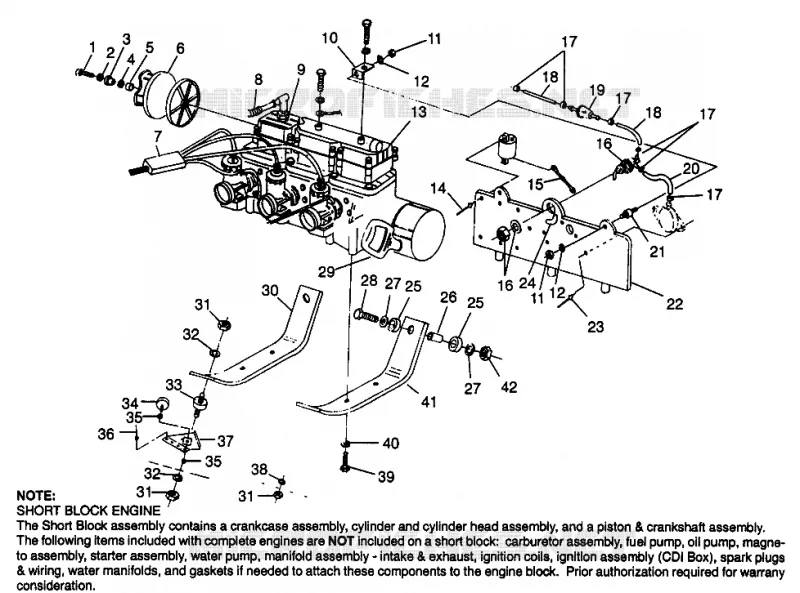

Find the detailed ENGINE MOUNTING ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805C002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
