1
Engine displacement
550
2
Year
2003
3
Trim
550 SUPERSPORT M-10 X F/O
4
Parts Catalog
RAIL MOUNTING (M-10)
5
Parts Diagram
Parts Catalog
DECALS (EDGE X)
by
SHOCK (REAR TRACK)(M-10)
RAIL MOUNTING (M-10)
-
ASM-RAIL M-10 RH NATURAL
1541677309
Not Available
-
ASM-RAIL M-10 LH NATURAL
1541676309
Not Available
1
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
2
WASHER
7555792
$9,44 Unit Price incl. VAT
3
RAIL TIP CAP
5434374
9999999
Not Available
4
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
5
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
6
BLOCK-RAIL SUPPORT
5132577
9999999
Not Available
7
RIVET(10)
7661845
$2,09 Unit Price incl. VAT
8
PLATE-RAIL SUPPORT
5244651
9999999
Not Available
9
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
10
BEARING
3514303
$20,99 Unit Price incl. VAT
11
ASM-WHEEL SCROLLED5.35SCR YL
1590275216
Not Available
11
ASM-WHEEL SCROLLED;5.35;I RED
1590275293
Not Available
11
WHEEL SCROLL ASSEMBLY; 5.35; INDY BLUE
1590275312
Not Available
12
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
13
BUMPER-JOUNCE RAIL
5411947
9999999
Not Available
14
BOLT
7512392
$9,44 Unit Price incl. VAT
15
SCR 7/16-14X3 3/4XHD
7517773
$41,99 Unit Price incl. VAT
16
NUT-TENSION ADJ 7/16-14
5132712
9999999
Not Available
17
RIVET
7621501
$4,19 Unit Price incl. VAT
18
BLOCK-IDLER BOLT ADJTHIN7/16
5132611
9999999
Not Available
19
GUIDE-SLIDER CAST LH
5631188
9999999
Not Available
19
GUIDE-SLIDER CAST RH
5631189
9999999
Not Available
20
COUPLER BLOCK PLATE
5245045
9999999
Not Available
21
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
22
BLOCK-SLIDER LONG M-10 RH
5434240
9999999
Not Available
22
BLOCK-SLIDER LONG M-10 LH
5434239
9999999
Not Available
23
BLOCK-SHOCK PIVOT THREADED
5132584
9999999
Not Available
24
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
25
NUT
7542404
$3,14 Unit Price incl. VAT
26
SPACER-.390X.56X.43
5133009
9999999
Not Available
27
BOLT
7511967
9999999
Not Available
28
CLAMP-RESERVIOR
5132832
9999999
Not Available
29
BOLT
7515319
$9,44 Unit Price incl. VAT
30
BOLT
7515382
$4,19 Unit Price incl. VAT
31
WASHER-SPRING CON 5/16X.090-Y
7556179
$11,54 Unit Price incl. VAT
32
WHEEL MOUNT BLOCK; LIGHTWEIGHT
5631065
9999999
Not Available
33
BOLT
7512329
$7,34 Unit Price incl. VAT
34
HI-FAX-M-10 NATURAL
5521563309
Not Available
35
SCREW
7511975
9999999
Not Available
36
SCREW
7515199
$2,09 Unit Price incl. VAT

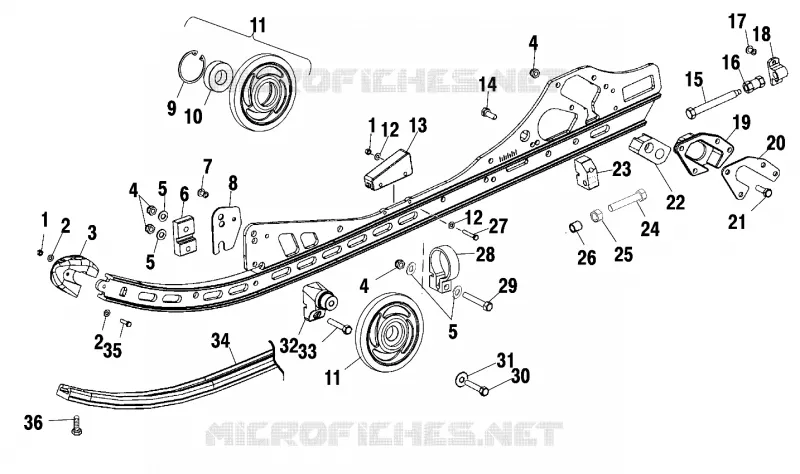

Find the detailed RAIL MOUNTING (M-10) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
