1
Engine displacement
400
2
Year
1994
3
Trim
SPORT 400L - W948540
4
Parts Catalog
ENGINE MOUNTING SPORT 400L W948540 (4927232723A008)
5
Parts Diagram
Parts Catalog
FRAME ASSEMBLY SPORT 400L W948540 (4927232723A007)
by
HEADLIGHT ASSEMBLY SPORT 400L W948540 (4927232723A013)
ENGINE MOUNTING SPORT 400L W948540 (4927232723A008)
29
31
32
32
33
33
34
34
35
1
MT. RUBBER ENG.
3110038
9999999
Not Available
2
MOTOR MOUNT INSULATOR
5430802
9999999
Not Available
3
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
4
BOLT
7515321
9999999
Not Available
5
CABLE GROUND/ENG.
4010067
9999999
Not Available
6
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
7
MOUNT ENG.TOP
5222415067
Not Available
8
BOLT
7512566
9999999
Not Available
9
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
10
WASHER
5210748
$7,34 Unit Price incl. VAT
11
BUSHING
5430261
$13,64 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
NUT LOCK
7542403
9999999
Not Available
15
CLAMP WORM DRIVE
7080547
9999999
Not Available
16
BR8ES SPARK PLUG; NGK(4)
3070156
$7,34 Unit Price incl. VAT
17
CABLE SOLENOID/STARTER
4010064
9999999
Not Available
18
INSUL.CABLE SOL.
5410346
9999999
Not Available
19
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
20
BOOT CLUTCH INTAKE(400)
5410883
9999999
Not Available
21
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
22
SCREW
7512490
$7,34 Unit Price incl. VAT
23
MOUNT ENGINE
1040231067
Not Available
24
HOSE RETAINER SPRING
7041079
9999999
Not Available
25
HOSE LOWER ENG.
5410606
Not Available
26
ENG.EC38PL-02 [No Longer Available]
1211554
Not Available
27
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
28
CHECKVALVE VENT
7052047
9999999
Not Available
29
MOUNT REAR MOTOR BLK.
5240542067
Not Available
30
WASHER
7555801
$7,34 Unit Price incl. VAT
31
MOUNT RUBBER ENG.
3110042
9999999
Not Available
32
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
33
STRAP 8 IN.TYTON
7080571
9999999
Not Available
34
FUEL LINE3/16 ID(600 CM.)
8450042600
Not Available
35
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT

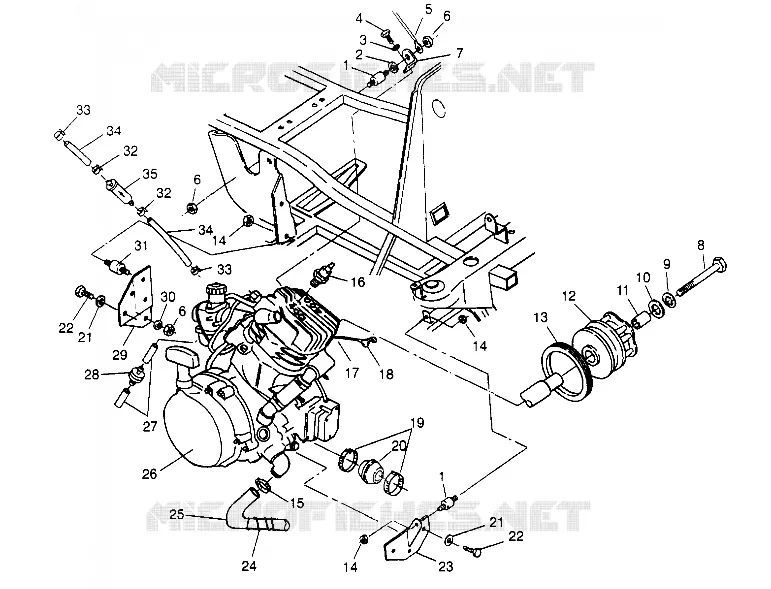

Find the detailed ENGINE MOUNTING SPORT 400L W948540 (4927232723A008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
