Engine displacement
500
2
Year
2002
3
Trim
500 XC SP
4
Parts Catalog
REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM
by
SHOCK (IFS)
REAR TORQUE ARM
1
2
2
2
2
3
4
5
6
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
19
19
20
21
22
23
23
23
24
24
24
25
25
26
27
28
29
30
31
32
1
2
2
2
2
3
4
5
6
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
19
19
20
21
22
23
23
23
24
24
24
25
25
26
27
28
29
30
31
32
1
WELD-REAR TORQUE ARMRED
1541561293
Not Available
2
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
3
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT
4
THRUST WASHER
7555945
$11,54 Unit Price incl. VAT
5
ARM SHAFT
5333758
9999999
Not Available
6
BUSHING
3514331
$34,64 Unit Price incl. VAT
7
SCREW
7515415
9999999
Not Available
8
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
9
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
10
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
11
SCREW
7517435
$22,56 Unit Price incl. VAT
12
ARM ASSEMBLY
1541461
9999999
Not Available
13
SPACER WHEEL
5132388
9999999
Not Available
14
WHEEL ASSEMBLY
1590278
9999999
Not Available
15
WASHER THRUST
7555787
9999999
Not Available
16
TORSION SPRING SLEEVE
5431923
9999999
Not Available
17
ROLLER SPRING ADJ SQUARE
5432983
$19,94 Unit Price incl. VAT
18
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
19
TORSION SPRING .405 77 LEFT SIDE GS BLK
7041940067
Not Available
19
TORSION SPRING .405 77 RIGHT SIDE GS BLK
7041941067
Not Available
19
SPRING TORSION .359/77 RH BLK
7041630067
Not Available
19
SPRING TORSION .359/77 LH BLK
7041629067
Not Available
19
SPRING-TORS.375SQ/77 ;RH;BLK
7041943067
Not Available
19
SPRING-TORS.375SQ/77 LHBLK
7041942067
Not Available
20
SCREW
7517232
$36,74 Unit Price incl. VAT
21
SHAFT .740X.390X7.055 6066
5333873
9999999
Not Available
22
BOLT
7515514
$13,64 Unit Price incl. VAT
23
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
24
BUSHING .378 X .616 X 1.12
5132391
$13,64 Unit Price incl. VAT
25
ROD SHOCK
1541479067
Not Available
26
SCREW-3/8-24X3.75-HX/P-80-GR8Y
7517851
$11,54 Unit Price incl. VAT
27
BUSHING NUT; .616 X 1.12 X .875
5132390
$40,94 Unit Price incl. VAT
28
SLEEVE; .385 X .560 X 1.30
5333907
9999999
Not Available
29
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
30
SPACER .397X.562X1.250
5333904
9999999
Not Available
31
SHOCK R/T FOX PPS
7041846
9999999
Not Available
32
BUSHING
5010422
$18,89 Unit Price incl. VAT

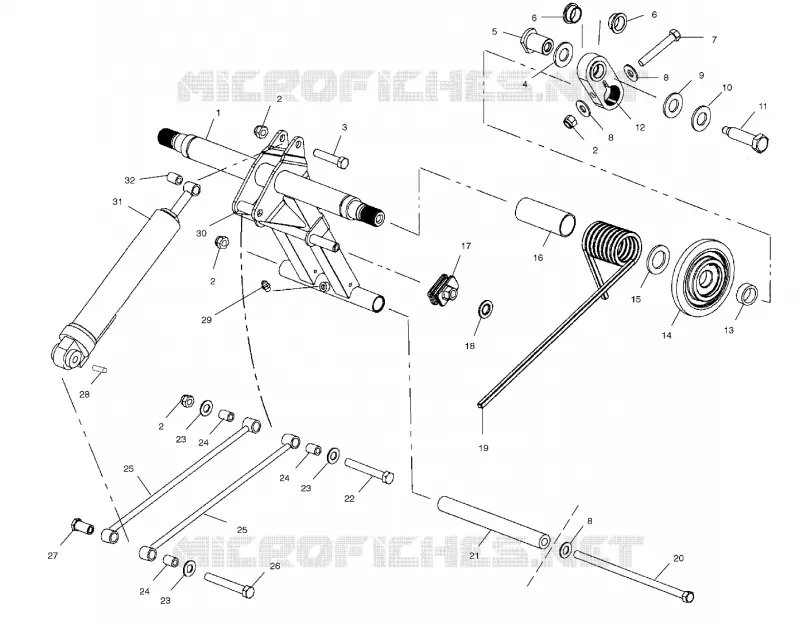

Find the detailed REAR TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for 500 XC SP

CHASSIS

CHASSIS

for 500 XC SP from 2002

SEAT GAS TANK

SEAT GAS TANK

for 500 XC SP from 2002

NOSEPAN

NOSEPAN

for 500 XC SP from 2002

NOSEPAN

NOSEPAN

for 500 XC SP from 2002

HOOD

HOOD

for 500 XC SP from 2002

BRAKE

BRAKE

for 500 XC SP from 2002

FRONT SUSPENSION

FRONT SUSPENSION

for 500 XC SP from 2002

SKI

SKI

for 500 XC SP from 2002

STEERING

STEERING

for 500 XC SP from 2002

FRONT TORQUE ARM

FRONT TORQUE ARM

for 500 XC SP from 2002

REAR TORQUE ARM

REAR TORQUE ARM

for 500 XC SP from 2002

SHOCK (IFS)

SHOCK (IFS)

for 500 XC SP from 2002

SHOCK (FRONT TRACK)

SHOCK (FRONT TRACK)

for 500 XC SP from 2002

AIR BOX

AIR BOX

for 500 XC SP from 2002

EXHAUST

EXHAUST

for 500 XC SP from 2002

ENGINE MOUNTING

ENGINE MOUNTING

for 500 XC SP from 2002

CRANKCASE

CRANKCASE

for 500 XC SP from 2002

PISTON CRANKSHAFT

PISTON CRANKSHAFT

for 500 XC SP from 2002

MAGNETO

MAGNETO

for 500 XC SP from 2002

RECOIL STARTER

RECOIL STARTER

for 500 XC SP from 2002

TOOL KIT

TOOL KIT

for 500 XC SP from 2002

HOOD

HOOD

for 500 XC SP from 2002

DECALS

DECALS

for 500 XC SP from 2002

HOOD FOAM/FOIL

HOOD FOAM/FOIL

for 500 XC SP from 2002

CONSOLE

CONSOLE

for 500 XC SP from 2002

STEERING HANDLEBAR

STEERING HANDLEBAR

for 500 XC SP from 2002

COOLING SYSTEM

COOLING SYSTEM

for 500 XC SP from 2002

RAIL MOUNTING (SUSPENSION)

RAIL MOUNTING (SUSPENSION)

for 500 XC SP from 2002

SUSPENSION

SUSPENSION

for 500 XC SP from 2002

SHOCK (REAR TRACK)

SHOCK (REAR TRACK)

for 500 XC SP from 2002

CHAINCASE

CHAINCASE

for 500 XC SP from 2002

DRIVE TRAIN

DRIVE TRAIN

for 500 XC SP from 2002

DRIVE CLUTCH

DRIVE CLUTCH

for 500 XC SP from 2002

DRIVEN CLUTCH

DRIVEN CLUTCH

for 500 XC SP from 2002

CYLINDER

CYLINDER

for 500 XC SP from 2002

WATER PUMP/OIL PUMP

WATER PUMP/OIL PUMP

for 500 XC SP from 2002

CARBURETOR

CARBURETOR

for 500 XC SP from 2002

CARBURETOR

CARBURETOR

for 500 XC SP from 2002
