Parts Catalog
REAR WHEEL DRIVE ASSEMBLY (AFTER SERIAL #2501800)
5
Parts Diagram
Parts Catalog
REAR WHEEL DRIVE ASSEMBLY
by
GEAR SELECTOR
REAR WHEEL DRIVE ASSEMBLY (AFTER SERIAL #2501800)
1
2
3
3
4
4
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
21
21
22
23
24
24
25
25
26
26
27
28
29
30
31
32
33
1
2
3
3
4
4
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
21
21
22
23
24
24
25
25
26
26
27
28
29
30
31
32
33
1
2
3
3
4
4
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
21
21
22
23
24
24
25
25
26
26
27
28
29
30
31
32
33
1
WASHER
7555764
9999999
Not Available
2
JAM NUT
5020468
9999999
Not Available
3
BOLT
7512673
$5,76 Unit Price incl. VAT
4
HUB KIT
2200341
9999999
Not Available
5
PUSHNUT BOLT
7670081
9999999
Not Available
6
WRGLR SPRT 24-1100-10NHS__MB0
5410479
9999999
Not Available
7
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
8
NUT
7542714
9999999
Not Available
9
WASHER
7555745
9999999
Not Available
10
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
11
CASTLE NUT
7543005
9999999
Not Available
12
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
13
COVER DUST HUB
5410404
5413427
$52,49 Unit Price incl. VAT
14
CONNECTOR LINK
3225024
9999999
Not Available
15
CHAIN DRIVE 86P
3224046
3221193-086
$272,99 Unit Price incl. VAT
16
NUT LOCK
7542403
9999999
Not Available
17
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
18
GUARD 38T SPKT BLK.ALUM.
5211585067
Not Available
19
SPACER
5020797
9999999
Not Available
19
SPACER-SPROCKET GUARD
5630586
9999999
Not Available
20
BOLT
7515540
$9,44 Unit Price incl. VAT
21
SPROCKET 38T
3222065
9999999
Not Available
21
SPROCKET; 42T
3223009
9999999
Not Available
22
SPROCKET HUB ASM.
1520170
9999999
Not Available
23
STUD 3/8-24 X 1.12
7515513
9999999
Not Available
24
O RING 1 5/16(10)
5410415
9999999
Not Available
25
AXLE SEAL; REAR
3610013
9999999
Not Available
26
BALL BEARING
3515501
$47,24 Unit Price incl. VAT
27
TUBE BEARING SPACER
5010204
9999999
Not Available
28
HOUSING AXLE
5130663
9999999
Not Available
29
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
30
SPACER BEARING
5010206
9999999
Not Available
31
SNAP RING
7710405
9999999
Not Available
32
AXLE REAR
5020789
9999999
Not Available
33
RIM-REAR 8.5/10SILVER
1520183117
Not Available

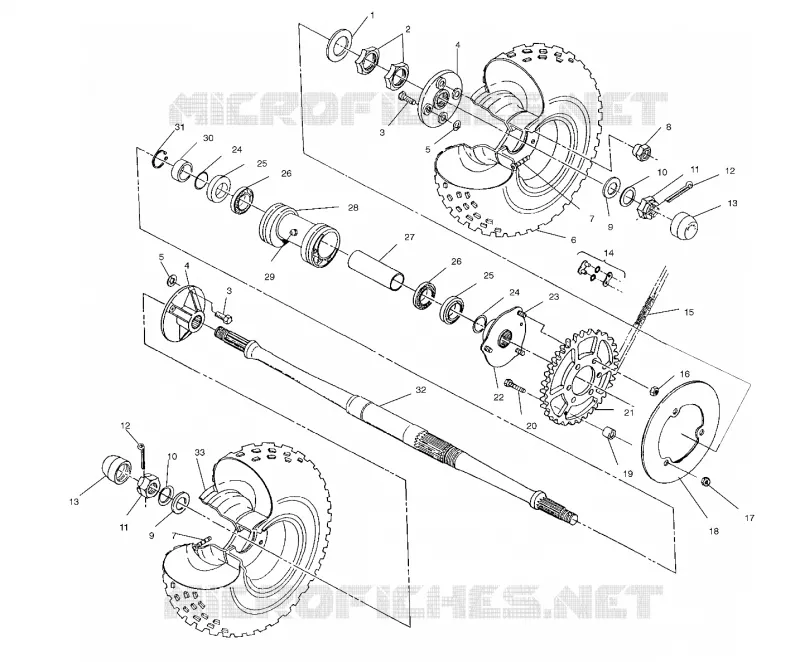

Find the detailed REAR WHEEL DRIVE ASSEMBLY (AFTER SERIAL #2501800) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
