Engine displacement
800
2
Year
2003
3
Trim
800 XC SP EDGE M-10 F/O
4
Parts Catalog
CHASSIS
5
Parts Diagram
Parts Catalog
BATTERY BOX
by
SEAT GAS TANK
CHASSIS
-
Asm. Chassis M-10 Natural
1013805309
Not Available
-
Asm. Chassis M-10 Natural/Yellow [X]
10138111124
Not Available
-
Asm. Chassis Edge Natural
1013778309
Not Available
-
Asm. Chassis Edge X Natural/Yellow
10137951124
Not Available
1
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
2
OIL TANK AND HOSE SUPPORT BRACKET
5246330
9999999
Not Available
3
STOP TORQUE COURSE
3110078
9999999
Not Available
4
NUT
7542404
$3,14 Unit Price incl. VAT
5
WELD-TORQUE STOP
1013377
9999999
Not Available
6
SCREW
7517632
$10,49 Unit Price incl. VAT
7
SCR-3/8-16X1-P30-SPEC-Y
7517854
$10,49 Unit Price incl. VAT
8
BRACE-LOWER TUNNEL BLK LH
5244997067
Not Available
8
BRACE-LOWER TUNNEL BLK RH
5244998067
Not Available
9
PAD-SUSP FRONT BLK RH
5245001067
Not Available
9
PAD-SUSP FRONT BLK LH
5244999067
Not Available
10
BOLT
7512240
9999999
Not Available
11
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
12
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
13
ASM-REAR BUMPER;SCR YLW
2632165216
Not Available
13
BUMPER ASSEMBLY; REAR
2632165309
Not Available
14
RIVET
7621472
$2,09 Unit Price incl. VAT
15
SNOW FLAP; SHORT
54339611038
Not Available
15
FLAP-SNOW EDGE X
5433979
9999999
Not Available
16
SCREW .75
7517441
$4,19 Unit Price incl. VAT
17
REFLECTOR ASSEMBLY; RED
2670133
9999999
Not Available
18
ASM-SNOWSKIRT/REFLECTOR BLK LH
2632443070
Not Available
18
ASM-SNOWSKIRT/REFLECTOR BLK RH
2632444070
Not Available
19
RIVET
7661637
$2,09 Unit Price incl. VAT
20
BRACE-TUNNEL ROLL
5245118
9999999
Not Available
21
GRIP-TUNNEL EDGE RH
5132904
9999999
Not Available
21
GRIP-TUNNEL ROLL EDGE LH
5132903
9999999
Not Available
22
STRAP
5433150
$47,24 Unit Price incl. VAT
23
PAD-CLUTCH GUARD
5812352
9999999
Not Available
24
FOOTREST SUPPORT LEFT
5246310
9999999
Not Available
24
SUPPORT-FOOTREST RH
5246311
9999999
Not Available
25
TOE CLIP CONSOLE MOUNT; LEFT
5245457
9999999
Not Available
25
CONSOLE MOUNT; TOE CLIP; RIGHT
5245458
9999999
Not Available
26
FOOTREST RH
5242740
9999999
Not Available
26
FOOTREST; LEFT
5245288
9999999
Not Available
27
MOUNT KIT; TRAILING ARM; LEFT
2202059
9999999
Not Available
27
KIT-MOUNT TRAILING ARM RH
2202060
9999999
Not Available
28
BARBED PLUG; .625
7081085
$13,64 Unit Price incl. VAT
28
GROMMET-M10 ACE WIRE
5412276
9999999
Not Available
29
GUARD-BELT EDGE W/BEND
5245836
9999999
Not Available
30
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
31
RIVET INTERLOCK(50)
7661639
7661130
$2,09 Unit Price incl. VAT
32
PLUG-HOLE 1.25
7081076
9999999
Not Available
33
BULKHEAD-FRONT MACH
5132292
9999999
Not Available

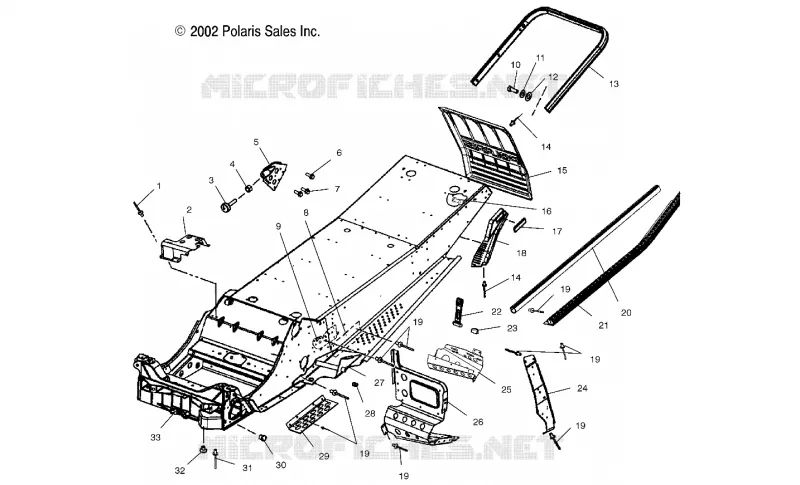

Find the detailed CHASSIS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
