1
UPPER RIGHT HAND FRONT A-ARM; MT BLK
1020888458
Not Available
1
UPPER FRONT LEFT HAND A-ARM; MATTE BLACK
1020887458
Not Available
2
A-ARM; FRONT; LOWER; LEFT; MATTE BLACK
1019668458
Not Available
2
A-ARM; FRONT; LOWER; RIGHT; MATTE BLACK
1019669458
Not Available
3
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
4
BALL-JOINT 10MM STUD
7081991
7082507
$89,24 Unit Price incl. VAT
5
EXTERNAL RETAINER RING
7710533
$4,19 Unit Price incl. VAT
6
PIVOT SHAFT
5138797
$16,79 Unit Price incl. VAT
7
A ARM PIVOT SHAFT 250MM LONG X15.88 OUT
5138791
$52,49 Unit Price incl. VAT
8
STANDARD BUSHING; ORV
5439874
$4,19 Unit Price incl. VAT
9
CARRIER-BEARING FRONT RH(MACH)
5138903
5139977
$182,69 Unit Price incl. VAT
9
CARRIER-BEARING FRONT LH(MACH)
5138902
5139988
$230,94 Unit Price incl. VAT
10
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
11
SEALED BALL BEARING; 44 X 72 X 33.1
3514699
$73,49 Unit Price incl. VAT
12
CV SHIELD; FRONT; RIGHT; GLOSS BLACK
5437545070
Not Available
12
CV SHIELD; FRONT; LEFT; GLOSS BLACK
5437544070
Not Available
13
RIVET
7621472
$2,09 Unit Price incl. VAT
14
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
15
BOLT M10 THREAD X1.25 PITCH X 275MM LONG
7519087
$26,24 Unit Price incl. VAT
16
WASHER
7556153
$3,66 Unit Price incl. VAT
17
FLANGE SCREW
7519306
$10,49 Unit Price incl. VAT
18
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT

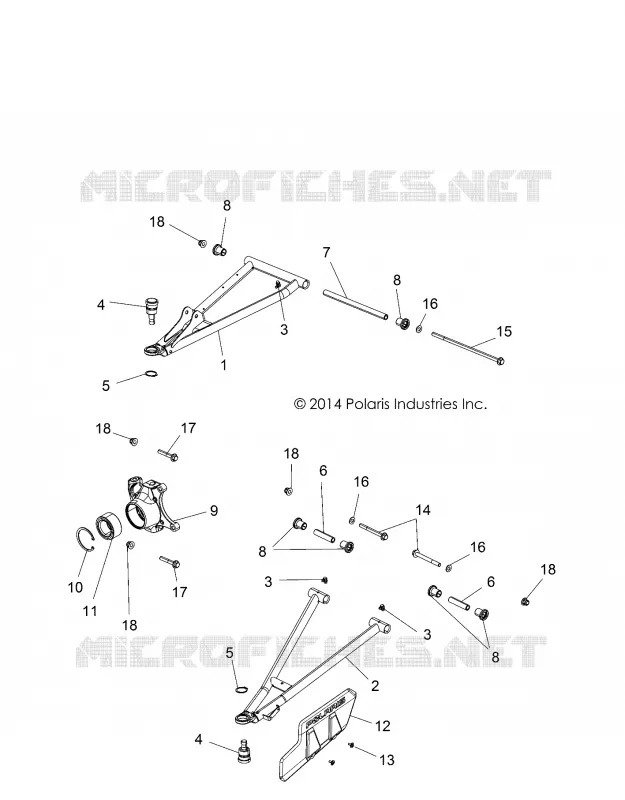

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
