1
Engine displacement
600
2
Year
1996
3
Trim
600 XCR - 0961676
4
Parts Catalog
CARBURETOR 600 XCR 0961676 AND EUROPEAN 600 XCR E961676 (4932123212C011)
5
Parts Diagram
Parts Catalog
WATER PUMP 600 XCR 0961676 AND EUROPEAN 600 XCR E961676 (4932123212C010)
by
OIL PUMP 600 XCR 0961676 AND EUROPEAN 600 XCR E961676 (4932123212C012)
CARBURETOR 600 XCR 0961676 AND EUROPEAN 600 XCR E961676 (4932123212C011)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
1
TOP (Incl. 3)
3130061
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
SPRING THROTTLE
3130444
9999999
Not Available
4
PLATE THROTTLE
3130054
9999999
Not Available
5
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
6
JET NEEDLE
3130329
9999999
Not Available
7
VALVE THROTTLE2.5
3130454
9999999
Not Available
8
JET NEEDLE Q-2
3130165
Not Available
9
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
12
CARBURETOR (Incl. 1-25 30-35)
3130582
Not Available
13
CAP
3130479
$31,49 Unit Price incl. VAT
14
SPRING AIR ADJUST
3130012
9999999
Not Available
15
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
16
SPRING
3130010
$18,89 Unit Price incl. VAT
17
SCREW THROTTLE STOP
3130009
9999999
Not Available
18
JET PILOT #35(10)
3130066
9999999
Not Available
19
PLATE
3130243
9999999
Not Available
20
RING CARB
3130232
9999999
Not Available
21
HEX HEAD MAIN JET
3130129
9999999
Not Available
22
FLOAT CHAMBER GASKET
3130236
$20,99 Unit Price incl. VAT
23
CAP
3130237
$8,39 Unit Price incl. VAT
24
FLOAT ASSEMBLY
3130021
$83,99 Unit Price incl. VAT
25
SCREW
3130056
9999999
Not Available
26
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
27
CLAMP HOSE
7080544
9999999
Not Available
28
DESC NOT_AVAILABLE
5131893
Not Available
29
FUEL LINE; 5 FT.
8450045153
Not Available
30
NIPPLE
3130573
$68,24 Unit Price incl. VAT
31
O-RING
3130239
9999999
Not Available
32
VALVE ASMNEEDLE
3130046
9999999
Not Available
33
WASHER
3130047
$9,44 Unit Price incl. VAT
34
ARM FLOAT
3130048
9999999
Not Available
35
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT

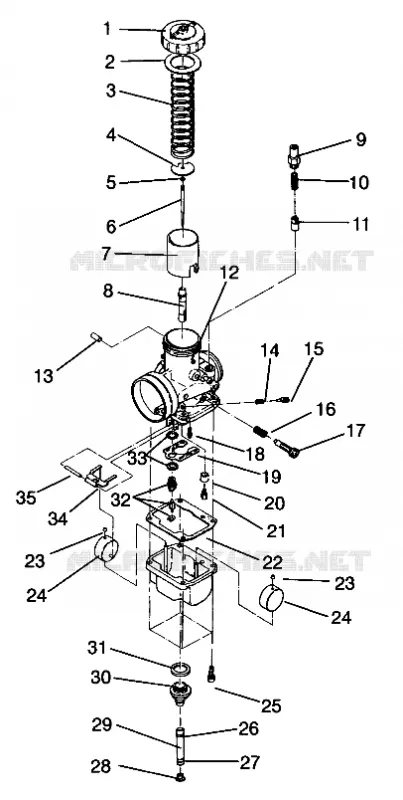

Find the detailed CARBURETOR 600 XCR 0961676 AND EUROPEAN 600 XCR E961676 (4932123212C011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
