1
Engine displacement
500
2
Year
1990
3
Trim
SWE 500 SP - S900664
4
Parts Catalog
CYLINDER 500 AND 500 CLASSIC (4916791679024A)
5
Parts Diagram
Parts Catalog
CRANKCASE 500 AND 500 CLASSIC (4916791679023A)
by
OIL PUMP 500 AND 500 CLASSIC (4916791679029A)
CYLINDER 500 AND 500 CLASSIC (4916791679024A)
1
CYLINDER
3083958
9999999
Not Available
2
STUD
3083074
9999999
Not Available
3
STUD
3080016
9999999
Not Available
4
GASKET BASE
3084025
9999999
Not Available
4
GASKET BASE
3083959
9999999
Not Available
5
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
6
NUT
3080285
9999999
Not Available
7
HEAD CYLINDER
3083960
9999999
Not Available
8
PIPE; WATER
3083452
9999999
Not Available
9
GASKET HEAD Substituted by 3084332
3083961
Not Available
9
GASKET HEAD
3084332
9999999
Not Available
10
FLANGE NUT
3082910
9999999
Not Available
11
LOCK WASHER
3080530
9999999
Not Available
12
PLUG
3083044
9999999
Not Available
13
GASKET-ALUM
3082719
9999999
Not Available
14
SWITCH THERMAL(93 DEG.C.)
3083055
9999999
Not Available
15
NECK FILLER
3083398
9999999
Not Available
16
GASKET FILLER NECK
3083340
9999999
Not Available
16
GASKET INTAKE
3084027
9999999
Not Available
17
BOLT FLANGE
3083361
9999999
Not Available
18
ADAPTER
3083171
9999999
Not Available
19
SOCKET HEAD BOLT
3081330
9999999
Not Available
20
ASM-ADAPTER BAND
3083166
7082340
$36,74 Unit Price incl. VAT
21
SCREW; PAN HEAD
3083086
9999999
Not Available
22
GASKET EXHAUST
3082510
9999999
Not Available
22
GASKET EXHAUST
3084026
9999999
Not Available

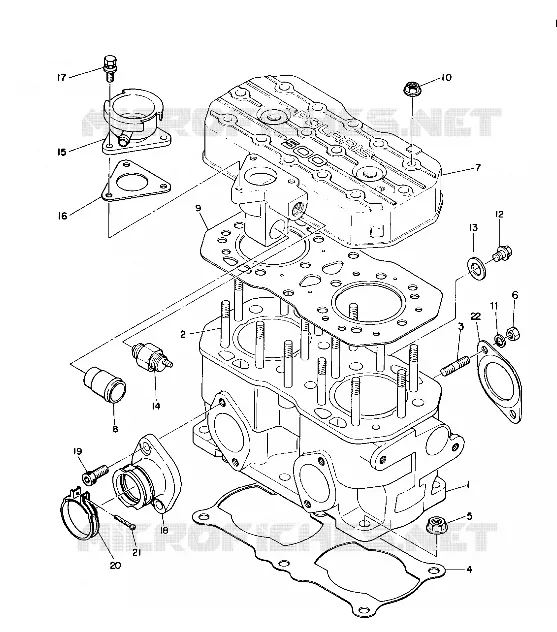

Find the detailed CYLINDER 500 AND 500 CLASSIC (4916791679024A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
