Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
COOLING, THERMOSTAT AND BYPASS
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
EXHAUST SYSTEM
COOLING, THERMOSTAT AND BYPASS
9
10
11
12
13
14
1
HSG-THERMOSTAT ASM
3022363
9999999
Not Available
2
THERMOSTAT COVER; CAST
5632421
$73,49 Unit Price incl. VAT
3
WATER INLET COVER GASKET
5813521
$12,59 Unit Price incl. VAT
4
THERMOSTAT
7052526
$141,74 Unit Price incl. VAT
5
HEX FLANGE SCREW; 6 MM X 16 MM
7518548
$3,14 Unit Price incl. VAT
6
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
7
OIL COOLER HOSE
5414475
$62,99 Unit Price incl. VAT
8
BYPASS LINE HOSE
5414283
9999999
Not Available
9
OIL COOLER OUTLET HOSE
5414282
$62,99 Unit Price incl. VAT
10
WATERPUMP OUTLET HOSE
5414143
$167,99 Unit Price incl. VAT
11
SPRING HOSE CLAMP; .81
7081026
$14,69 Unit Price incl. VAT
12
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
13
BRKT-BYPASS HOSE
5255514
9999999
Not Available
14
PLUG(10) 1/2-14 NPT
7051520
$15,74 Unit Price incl. VAT

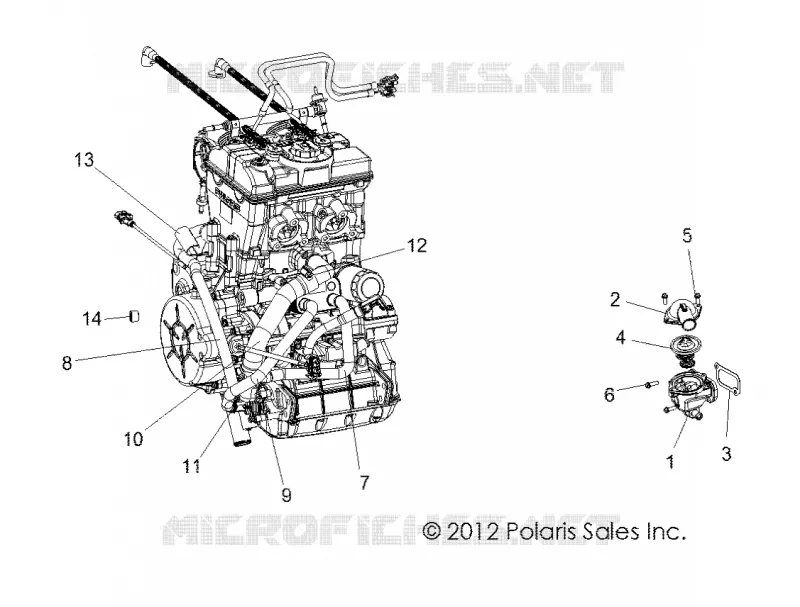

Find the detailed COOLING, THERMOSTAT AND BYPASS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
