FRONT SUSPENSION AND SKI ULTRA SKS 0960578 AND EURO ULTRA SKS E960578 (4931683168B003) for POLARIS ULTRA SKS

HOOD ULTRA SKS 0960578, EURO ULTRA SKS E960578, AND ULTRA RMK 0960978 (4931683168A010)

STEERING

BOLT(10)

7515515

9999999

Not Available

PLATE SHOCK MT.EXT BLK.

5211449067

Not Available

MT RH SHOCK EXT.BLK.

1012053067

Not Available

NUT; NYLOC

7542453

7542439

$2,09 Unit Price incl. VAT

REINFR.SHOCK MT.PLATE

5241395067

Not Available

BRKT-SPRING RETAINER

5211659

9999999

Not Available

RIVET(50)

7661643

7661130

$2,09 Unit Price incl. VAT

BOLT

7512551

9999999

Not Available

BOLT

7512678

$36,74 Unit Price incl. VAT

MT LH SHOCK EXT.BLK.

1012052067

Not Available

BAR;SWAY;5/8;W/FITTED

5224681067

Not Available

ARM STEERING

5241244067

Not Available

STOP LH STEERING

5241207067

Not Available

STOP RH STEERING

5241208067

Not Available

SWAY BAR BUSHING

5410386

9999999

Not Available

RIVET(50)

7661643

7661130

$2,09 Unit Price incl. VAT

NUT; FLEXLOC

7542452

7542411

$6,29 Unit Price incl. VAT

SLIDE SWAYBAR 5/8

5431736

9999999

Not Available

RUBBER PIVOT

5410872

9999999

Not Available

WASHER

7555721

$2,09 Unit Price incl. VAT

BUSHING TUBE

5010310

9999999

Not Available

BOLT

7512557

9999999

Not Available

ARM TRLG LH. (Incl. 17 19)

1822262

Not Available

ARM TRLG RH

1822264

9999999

Not Available

FLANGE BUSHING

3573909

$4,19 Unit Price incl. VAT

BUSHING

7556509

$3,14 Unit Price incl. VAT

FLANGED BUSHING

3574208

$6,29 Unit Price incl. VAT

SPINDLE BLK.

6230073067

Not Available

STOP RUBBER

5521276

9999999

Not Available

SCREW

7515462

9999999

Not Available

SKAG PR.3 CARBIDE(STEEL SKI)

2870693

$99,74 Unit Price incl. VAT

SKI WELD BLK

1820332067

Not Available

SPRING RETAINER; SLOTTED

5020618

$36,74 Unit Price incl. VAT

SPRING .306 COMP(LT) BLK.

7041405067

Not Available

RETAINER SPRING BODY THREADED

1500063

9999999

Not Available

ADJUSTABLE PRELOAD SPRING RING

5431734

$104,99 Unit Price incl. VAT

SHOCK GAS IFS

7041423

9999999

Not Available

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

PIN; COTTER

7661209

7661205

$1,56 Unit Price incl. VAT

NUT; CASTLE

7542457

7542438

$3,14 Unit Price incl. VAT

FITTING LUBE.W/BALL CK.(10)

7080306

$5,76 Unit Price incl. VAT

BUSHING PIVOT

5010158

$27,29 Unit Price incl. VAT

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

BOLT

7515491

7515433

$3,14 Unit Price incl. VAT

NUT; FLEXLOC B

7542456

9999999

Not Available

WASHER

7555851

7555832

$4,19 Unit Price incl. VAT

BUSHING-RAD ROD PIVOT

5432074

9999999

Not Available

BUSHINGRAD.RODUPP/LOWER

5010356

9999999

Not Available

ROD;RAD;LOWER

1822292067

Not Available

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

ROD END;RH

7060156

7061071

$99,74 Unit Price incl. VAT

NUT FLEXOC;

7542703

9999999

Not Available

BRACE PAN

5223997067

Not Available

NUT FLEXLOCK

7542503

9999999

Not Available

STRAP SPACER TOP

5211344

$13,64 Unit Price incl. VAT

RIVET

7661637

$2,09 Unit Price incl. VAT

BRACE BLKHD/STRG BLK.

5211589067

Not Available

ROD END; RH

7060155

9999999

Not Available

NUT JAM(10)

7542520

9999999

Not Available

STRAP SPACER BOTTOM

5211345

9999999

Not Available

ROD RAD UPPER

1822297067

Not Available

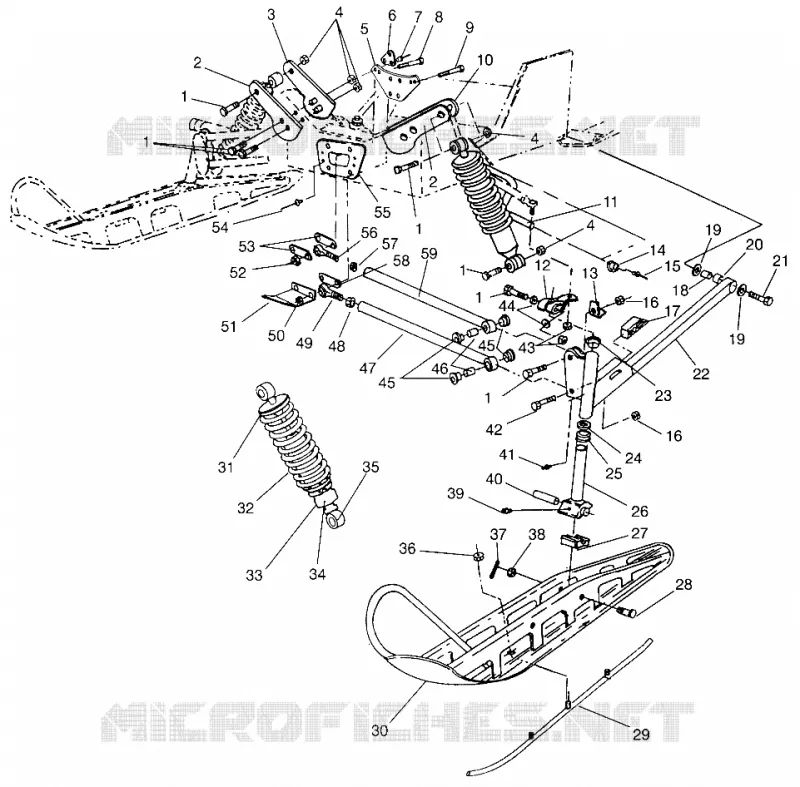

Find the detailed FRONT SUSPENSION AND SKI ULTRA SKS 0960578 AND EURO ULTRA SKS E960578 (4931683168B003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
