COOLING SYSTEM for POLARIS XPEDITION 425

HOSE CLAMP

7080614

$13,64 Unit Price incl. VAT

CAP-PRESSURE 13 PSI

1240044

1240508

$89,24 Unit Price incl. VAT

REMOTE COOLANT FILTER

5433364

$73,49 Unit Price incl. VAT

BRKT REMOTE COOLANT FILL

5243505067

Not Available

RIVET INTERLOCK

7661638

$2,09 Unit Price incl. VAT

HOSE;UPPER ENGINE

5411534

9999999

Not Available

CLAMP-ROTO SPRING 1"

7080827

9999999

Not Available

SCREW

7512024

$9,44 Unit Price incl. VAT

FILLER NECK HOSE

5411632

9999999

Not Available

CLAMP-ROTO CLIP

7080826

9999999

Not Available

SCREW

7517659

9999999

Not Available

FAN AND MOTOR ASSEMBLY; SPAL

2410123

$289,79 Unit Price incl. VAT

CLIP U

7670111

9999999

Not Available

NUTSERT HEX

7547069

$7,34 Unit Price incl. VAT

MOUNT; RUBBER

3110032

9999999

Not Available

MOUNT SPACER

5020572

9999999

Not Available

SHROUD-FAN

5433059

9999999

Not Available

THERMAL HARNESS SENSOR

4010161

9999999

Not Available

RADIATOR

1240045

9999999

Not Available

WASHER

7552605

9999999

Not Available

BOLT

7512113

$7,34 Unit Price incl. VAT

COVER-RADIATOR W/MESH

5433317

9999999

Not Available

O-RING

5410607

9999999

Not Available

O-Ring

5411633

Not Available

VALVE-PLASTIC DRAIN

7052244

9999999

Not Available

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

RADIATOR BRACKET; LOWER; GS BLK

5243503067

Not Available

SCREW

7517386

$2,09 Unit Price incl. VAT

HOSE LOWER ENGINE

5411533

9999999

Not Available

GUARD-HOSE 12

5521511

9999999

Not Available

BRACKET-COOLANT HOSE MOUNT;BLK

5244064067

Not Available

HOSE CLAMP

7080807

$17,84 Unit Price incl. VAT

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

GASKET

5810279

$4,19 Unit Price incl. VAT

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

SURGE TANK

5433410

9999999

Not Available

FUEL LINE; 1/4 ID

84500031525

Not Available

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

SCREW

7512084

$2,09 Unit Price incl. VAT

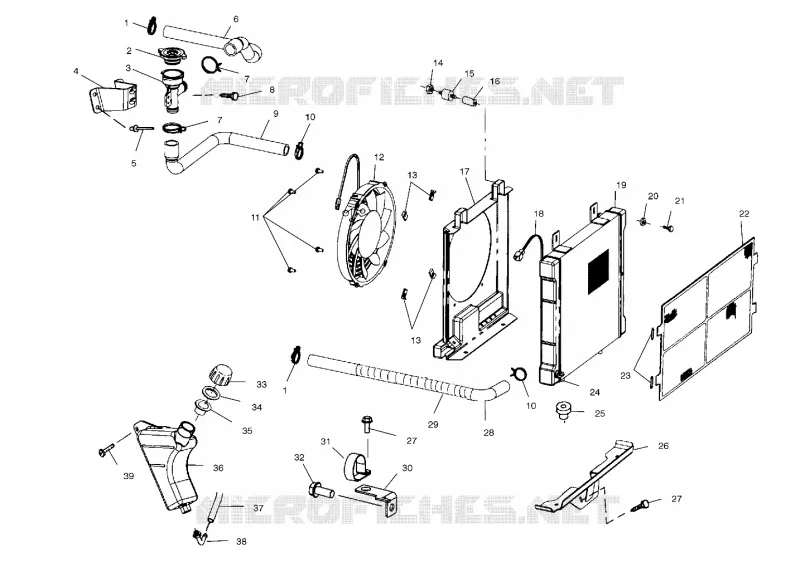

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
