FRONT SUSPENSION AND SKI for POLARIS TRANSPORT

BOLT

7512582

9999999

Not Available

BOLT

7512684

9999999

Not Available

SCREW

7515415

9999999

Not Available

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

PLATE TORS.BAR HOLE

5211771

9999999

Not Available

RIVET

7661637

$2,09 Unit Price incl. VAT

ARM STRG BLK

5241560067

Not Available

WASHER

7555832

$4,19 Unit Price incl. VAT

NUT LOCK

7542403

9999999

Not Available

RIVET(50)

7661643

7661130

$2,09 Unit Price incl. VAT

WASHER

7555721

$2,09 Unit Price incl. VAT

BUSHING TUBE

5010310

9999999

Not Available

RUBBER PIVOT

5410872

9999999

Not Available

BOLT

7512557

9999999

Not Available

ARM ASMTRLGLH

1822506

9999999

Not Available

ARM ASMTRLGRH

1822507

9999999

Not Available

STOP LH STRG BLK.

5241569067

Not Available

STOP RH STRG BLK.

5241570067

Not Available

FLANGE BUSHING

3573909

$4,19 Unit Price incl. VAT

BUSHING

7556509

$3,14 Unit Price incl. VAT

FLANGED BUSHING

3574208

$6,29 Unit Price incl. VAT

FITTING LUBE.W/BALL CK.(10)

7080306

$5,76 Unit Price incl. VAT

SPINDLE SHAFT; MEDIUM GLOSS BLACK

6230102067

Not Available

STOP; RUBBER

5411083

9999999

Not Available

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

SKI WELD

1820430067

Not Available

SCREW

7515462

9999999

Not Available

SKI SKAG WELD

1820267

$40,94 Unit Price incl. VAT

CASTLE NUT

7542438

$3,14 Unit Price incl. VAT

PIN; COTTER

7661209

7661205

$1,56 Unit Price incl. VAT

BUSHING PIVOT

5010158

$27,29 Unit Price incl. VAT

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

SCR-3/8-24X2 HX/CP GR5-Y-SP

7517583

$7,34 Unit Price incl. VAT

BUSH; RADIUS ROD PIVOT; OUT

5431486

9999999

Not Available

RADIUS ROD BUSHING

5010127

$12,59 Unit Price incl. VAT

ROD RAD LOWER BLK

1822410067

Not Available

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

ROD END

7060162

7061052

$99,74 Unit Price incl. VAT

BRKT RAD.ROD BTM.

5242578

9999999

Not Available

RIVET INTERLOCK

7661638

$2,09 Unit Price incl. VAT

NUT FLEXOC;

7542703

9999999

Not Available

STRAP SPACER BOTTOM

5211345

9999999

Not Available

NUT FLEXLOCK

7542503

9999999

Not Available

STRAP SPACER TOP

5211344

$13,64 Unit Price incl. VAT

PIVOT BUSHING

5411095

$27,29 Unit Price incl. VAT

ROD RAD.UPPER FIXED

1822435

9999999

Not Available

RADIUS ROD PIVOT BUSHING; 3/8

5411099

9999999

Not Available

TOP RETAINER

5220225

$19,94 Unit Price incl. VAT

COMPRESSION SPRING

7041261067

Not Available

RETAINER SPRING

5210953

$11,54 Unit Price incl. VAT

SHOCK IFS

7041748

9999999

Not Available

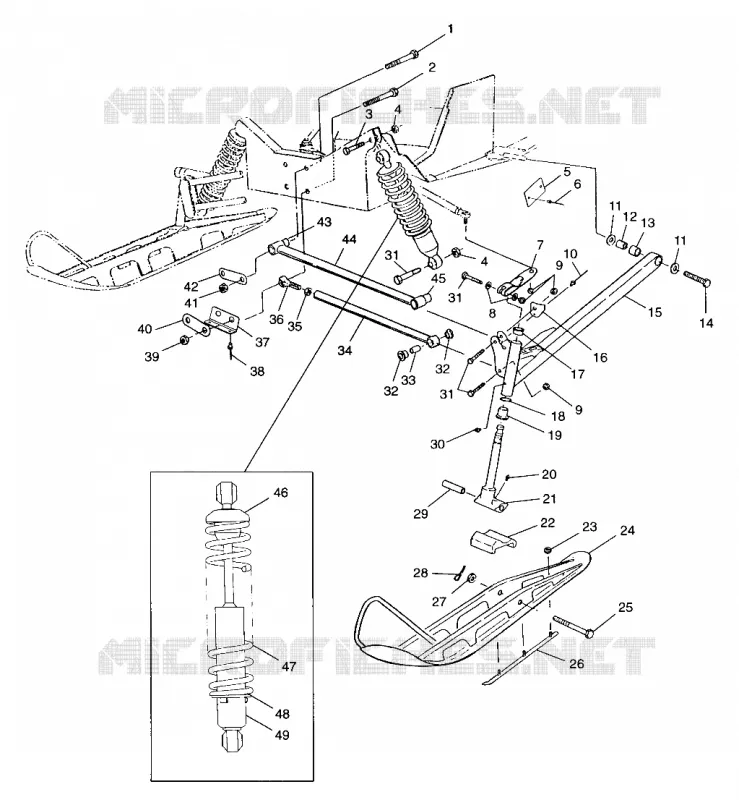

Find the detailed FRONT SUSPENSION AND SKI POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
