1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 6X6 TRACTOR
4
Parts Catalog

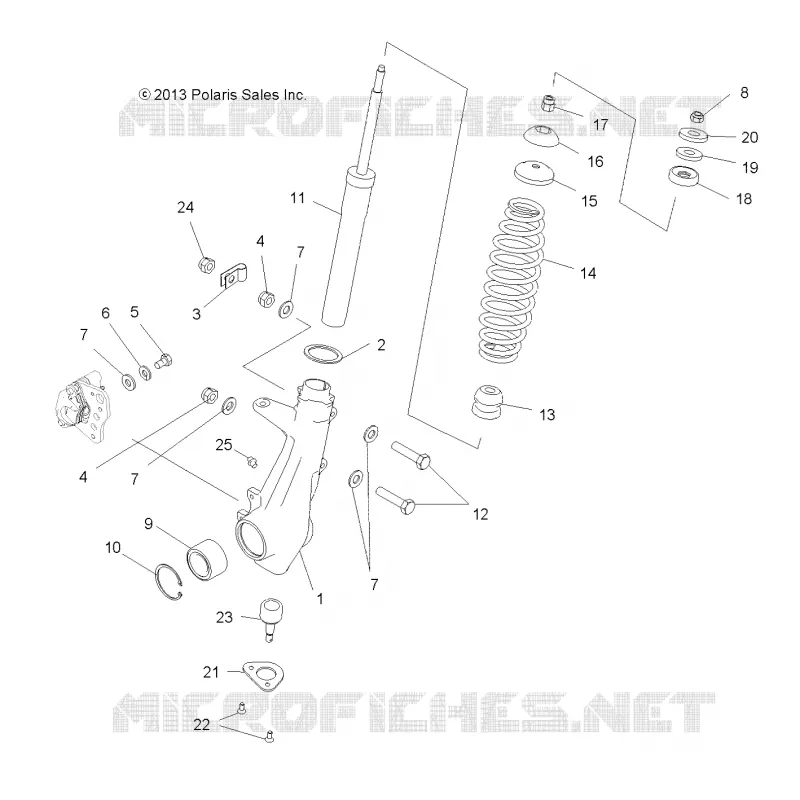

SUSPENSION, FRONT STRUT
5
Parts Diagram
Parts Catalog
OIL PUMP
by
SUSPENSION
SUSPENSION, FRONT STRUT
1
1
2
3
4
4
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
1
GREASEABLE HUBSTRUT ASSEMBLY; LEFT
1824117
9999999
Not Available
1
GREASEABLE HUBSTRUT ASSEMBLY; RIGHT
1824118
9999999
Not Available
2
WASHER
5211115
$7,34 Unit Price incl. VAT
3
CABLE CLAMP
7080367
$4,19 Unit Price incl. VAT
4
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
5
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
6
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
7
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
8
NUT
7547104
$2,09 Unit Price incl. VAT
9
WHEEL BEARING; 35 MM X 64 MM X 37 MM
3514634
$73,49 Unit Price incl. VAT
10
INTERNAL RETAINING RING
7710507
$4,19 Unit Price incl. VAT
11
FRONT STRUT
7041762
$230,99 Unit Price incl. VAT
12
BOLT
7512312
$2,09 Unit Price incl. VAT
13
MCU BUMPER; 17.8 MM
5412665
$12,59 Unit Price incl. VAT
14
SPRING-COMP 55-90 #/IN HT M.BL
7044718458
Not Available
15
RETAINER SPRING
5243364
$36,74 Unit Price incl. VAT
16
BALL BOTTOM PIVOT
5432871
$19,94 Unit Price incl. VAT
17
SPACER 1 2 20
5132062
$36,74 Unit Price incl. VAT
18
PIVOT BALL; TOP
5432872
$19,94 Unit Price incl. VAT
19
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
20
WASHER
7555749
$2,09 Unit Price incl. VAT
21
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
22
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
23
GREASELESS STRUT BALL JOINT
7061158
7061306
$52,49 Unit Price incl. VAT
24
NUT NYLOK
7542344
$7,34 Unit Price incl. VAT
25
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT

Find the detailed SUSPENSION, FRONT STRUT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
