Engine displacement
900
2
Year
2016
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog
ENGINE, COOLING SYSTEM
5

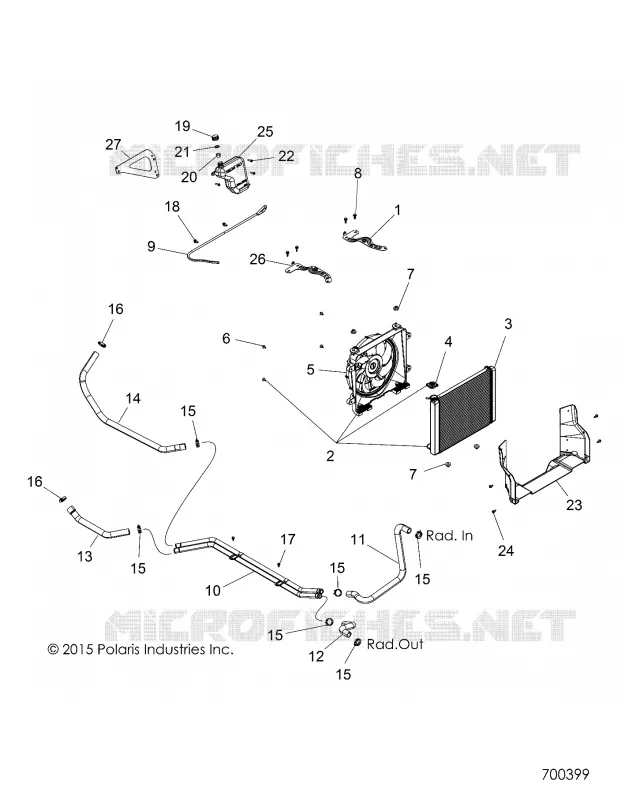

Parts Diagram
Parts Catalog
ENGINE, BALANCER
by
CYLINDER AND HEAD
ENGINE, COOLING SYSTEM
1
2
3
4
5
6
7
7
17
9
10
11
12
13
14
15
15
15
15
15
15
16
16
17
18
19
19
20
21
22
23
24
25
26
27
1
RADIATOR MOUNT BRACKET; LEFT; BLACK
5256596329
Not Available
2
RADIATOR ASSEMBLY
1240663
$1 244,24 Unit Price incl. VAT
3
CORE RADIATOR ASSEMBLY
1240664
$876,74 Unit Price incl. VAT
4
CAP
1240694
$73,49 Unit Price incl. VAT
5
FAN ASSEMBLY
2411816
$645,74 Unit Price incl. VAT
6
BOLT 6 MM X 15 MM
7519585
$17,84 Unit Price incl. VAT
7
GROMMET
7052028
$11,54 Unit Price incl. VAT
8
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
9
FUEL LINE; 1/4 ID
84500031525
Not Available
10
COOLANT TUBE; 1 IN
5137818
$68,24 Unit Price incl. VAT
11
HOSE-UPPER RAD
5414289
$167,99 Unit Price incl. VAT
12
RADIUS HOSE; LOWER
5414290
$83,99 Unit Price incl. VAT
13
ENGINE HOSE; INNER
5414291
$83,99 Unit Price incl. VAT
14
ENGINE HOSE; OUT
5414292
$141,74 Unit Price incl. VAT
15
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
16
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
17
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
18
CLIP
7670102
$4,19 Unit Price incl. VAT
19
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
19
OVERFLOW BOTTLE WITH FITTING CAP
5437635
$9,44 Unit Price incl. VAT
20
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
21
GASKET
5810279
$4,19 Unit Price incl. VAT
22
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
23
SHROUD-RADIATOR FRONT BLK
5439293070
Not Available
24
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
25
SURGE TANK
5439202
$178,49 Unit Price incl. VAT
26
RADIATOR MOUNT BRACKET; RIGHT; BLACK
5256597329
Not Available
27
BRKT-SURGE TANK MNT
5261799
9999999
Not Available
