1
Engine displacement
500
2
Year
1992
3
Trim
500 SP - X920674
4
Parts Catalog
FRONT TORQUE ARM 500 SP (4920222022019A)
5
Parts Diagram
Parts Catalog
SUSPENSION 500 SP (4920222022017A)
by
REAR TORQUE ARM 500 SP (4920222022020A)
FRONT TORQUE ARM 500 SP (4920222022019A)
1
2
3
3
4
5
6
7
8
9
10
10
11
11
11
11
12
12
13
14
15
15
15
15
16
17
17
18
18
19
1
STRAP LIMITER
5410397
9999999
Not Available
2
BOLT
7515307
$7,34 Unit Price incl. VAT
3
WASHER
7555716
$3,14 Unit Price incl. VAT
4
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
5
BUSHING SUSPENSION
5010212
Not Available
6
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
7
SUSPENSION SHOCK
7041142
9999999
Not Available
8
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
9
ARM FRONT TORQUE Substituted by 1540667-067
1540667
Not Available
10
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
11
BUSHING
7556301
$6,29 Unit Price incl. VAT
12
SPACER OUTER
5332784
9999999
Not Available
13
SUBSTITUTED BY 5020561
5333027
$2,61 Unit Price incl. VAT
14
SPACER
5333028
9999999
Not Available
15
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
16
SHAFT MOUNTING
5010149
9999999
Not Available
17
BOLT
7515438
$9,44 Unit Price incl. VAT
18
SCREW
7515415
9999999
Not Available
19
BOLT(10)
7515432
9999999
Not Available

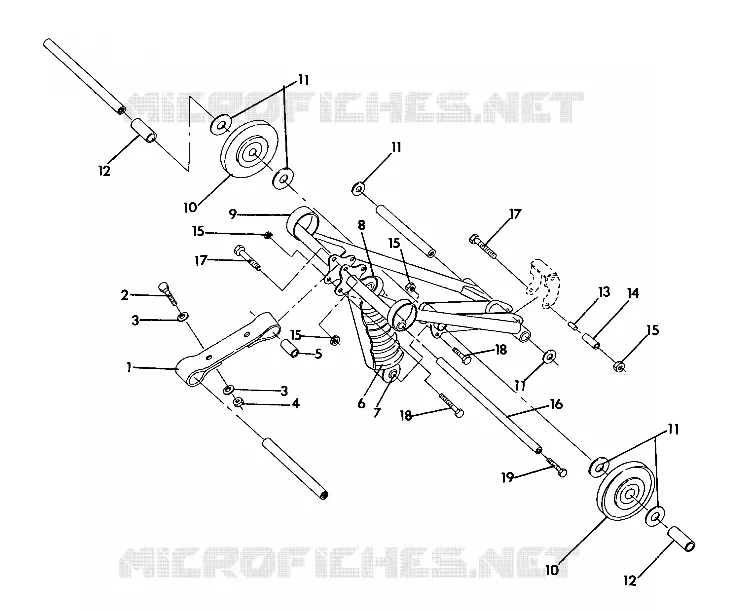

Find the detailed FRONT TORQUE ARM 500 SP (4920222022019A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
