Engine displacement
500
2
Year
1992
3
Trim
500 SP - X920674
4
Parts Catalog
CYLINDER 500 SP (4920222022032A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH 500 SP (4920222022026A)
by
PISTON AND CRANKSHAFT 500 SP (4920222022033A)
CYLINDER 500 SP (4920222022032A)
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
23
24
25
26
27
28
1
CYLINDER CPL.
3084330
9999999
Not Available
2
STUD
3083074
9999999
Not Available
3
STUD
3080016
9999999
Not Available
4
GASKET BASE
3083959
9999999
Not Available
5
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
6
CLAMP
3084051
Not Available
7
HEAD CYL.CPL.
3084331
9999999
Not Available
8
PIPE; WATER
3083452
9999999
Not Available
9
GASKET HEAD
3084332
9999999
Not Available
10
FLANGE NUT
3082910
9999999
Not Available
11
HOSE 2 WATER
3084338
Not Available
12
PLUG
3082718
9999999
Not Available
13
GASKET-ALUM
3082719
9999999
Not Available
14
SENSOR WATER TEMP
3084333
9999999
Not Available
15
NECK FILLER
3083339
9999999
Not Available
16
GASKET FILLER NECK
3083340
9999999
Not Available
17
BOLT FLANGE
3083361
9999999
Not Available
18
ADAPTERCPL LH
3084334
9999999
Not Available
19
ADAPTER CPL. RH
3084335
Not Available
20
O-RING
3084229
9999999
Not Available
21
SOCKET HEAD BOLT
3081330
9999999
Not Available
22
BAND ASM.
3084045
9999999
Not Available
23
PAN HEAD SCREW
3081497
9999999
Not Available
24
GASKET EXHAUST
3082510
9999999
Not Available
25
NUT
3080285
9999999
Not Available
26
WASHER SPRING
3080051
9999999
Not Available
27
JOINT PIPE
3084336
Not Available
28
HOSE 1 WATER
3084337
Not Available

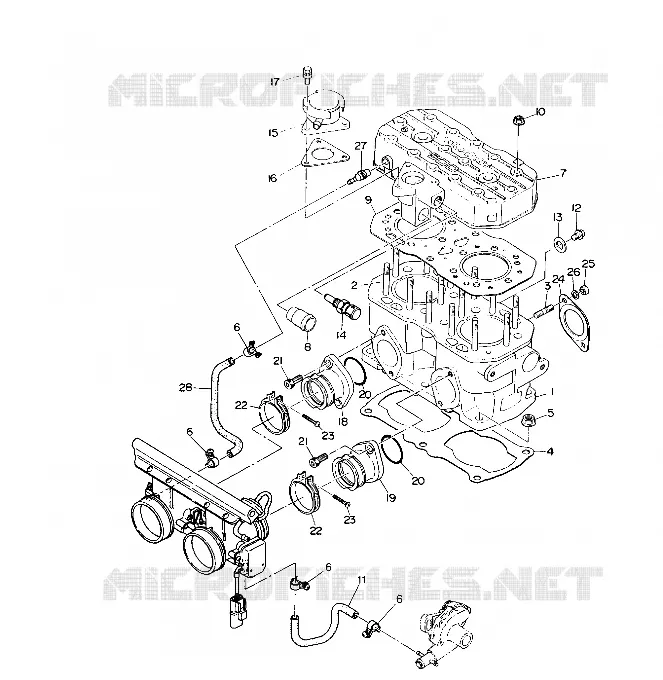

Find the detailed CYLINDER 500 SP (4920222022032A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
