1
Engine displacement
570
2
Year
2018
3
Trim
RZR 570 EU
4
Parts Catalog
BRAKES, BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SIDE NETS
by
FRONT BRAKE CALIPER
BRAKES, BRAKE LINES AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
26
27
28
1
2
3
4
5
6
7
8
9
10
11
12
1
TANDEM MASTER CYLINDER ASSEMBLY
1911982
$246,74 Unit Price incl. VAT
2
TANDEM MASTER CYLINDER CAP KIT; 3/4 IN
2203455
$89,24 Unit Price incl. VAT
3
KIT-CLEVIS M/C TANDEM HB 3/4
2203456
$62,99 Unit Price incl. VAT
4
KIT-NUTS CLEVIS M/C TANDEM
2203457
$62,99 Unit Price incl. VAT
5
LINE-BRAKE REAR LEFT BRD INTL
1911907
9999999
Not Available
6
LINE-BRAKE FRONT RIGHT BRD INT
1911906
$152,24 Unit Price incl. VAT
7
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
8
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
9
LINE-BRAKE REAR RIGHT BRD INTL
1911908
$167,99 Unit Price incl. VAT
10
SEAL
5413212
9999999
Not Available
11
TEE FITTING BRAKE
7052293
$110,24 Unit Price incl. VAT
12
SWITCH
4014225
$167,99 Unit Price incl. VAT
13
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
14
BRAKE LINE RETAINER; 1 IN
5439192
$3,14 Unit Price incl. VAT
15
POP RIVET
7621323
$2,09 Unit Price incl. VAT
16
SCREW
7512025
$9,44 Unit Price incl. VAT
17
SCREW
7512084
$2,09 Unit Price incl. VAT
18
CLAMP CABLE
7080499
$10,49 Unit Price incl. VAT
19
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
20
CLIP
7670102
$4,19 Unit Price incl. VAT
21
LINE-BRAKE MASTER TO REAR INTL
1911921
$125,99 Unit Price incl. VAT
22
LINE-BRAKE FRONT LEFT BRD INTL
1911905
9999999
Not Available
23
SHIELD-MASTER CYL
5251507
$52,49 Unit Price incl. VAT
25
BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM
7518760
$17,84 Unit Price incl. VAT
26
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
27
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
28
WASHER
7555954
$9,44 Unit Price incl. VAT

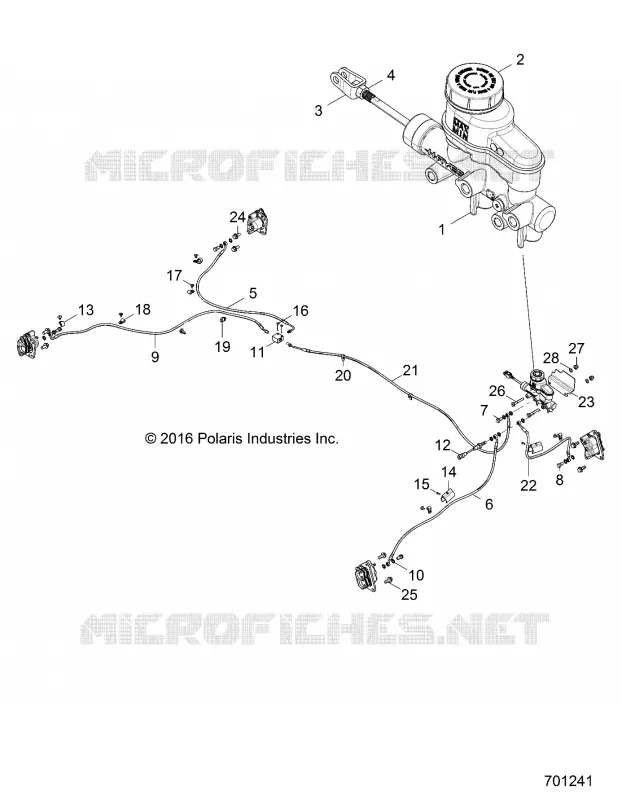

Find the detailed BRAKES, BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
