FRONT HOUSING
5
Parts Diagram
Parts Catalog
FOOT BRAKE
by
GEARCASE (INTERNAL COMPONENTS)
FRONT HOUSING
-
GEARCASE ASM;FRONT
1341257
9999999
Not Available
1
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
2
O-RING
3233315
Not Available
3
COVER F.HSG INPUT
3233316
Not Available
4
BEARING
3233019
$54,59 Unit Price incl. VAT
5
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
6
BEARING
3233020
$80,84 Unit Price incl. VAT
7
SHAFT INPUT FRONT HSG.
3233489
Not Available
8
BEARING;PLAIN
3233479
9999999
Not Available
9
WASHER
3233480
9999999
Not Available
10
SEAL
3233319
9999999
Not Available
11
RING RETAINING
3233320
9999999
Not Available
12
SCREW
3233321
9999999
Not Available
13
VENT
3233037
9999999
Not Available
14
HSG;GEARCASE FRT.
3233481
9999999
Not Available
15
RIVET
3233463
Not Available
16
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
17
PLUG DRAIN
3233253
9999999
Not Available
18
WASHER
3233324
9999999
Not Available
19
DIPSTICK (PLUG)
3233325
9999999
Not Available
20
BEARING NEEDLE
3233326
9999999
Not Available
21
SHAFT O/P FR.HSG.
3233327
9999999
Not Available
22
GEAR31TFRT.HSG.
3233328
9999999
Not Available
23
WASHER THRUST
3233346
Not Available
24
WASHER THRUST
3233347
Not Available
25
BEARING BALL
3233329
9999999
Not Available
26
COVER FR.HSG OUTPUT
3233330
Not Available
27
O-RING
3233331
9999999
Not Available

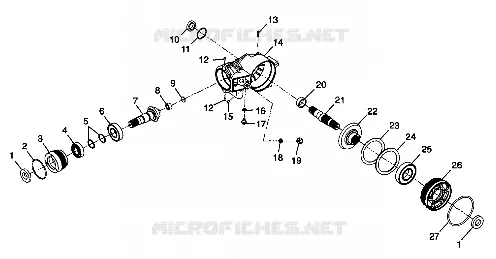

Find the detailed FRONT HOUSING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
