FUEL SYSTEM, FUEL TANK ASM. for POLARIS 850 INDY ADVENTURE 137 from 2022

FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY

FUEL SYSTEM, FUEL TANK ASM.

1

GAS TANK CAP

5450389

$36,74 Unit Price incl. VAT

2

SEAT MOUNT; FRONT

5451185

$8,39 Unit Price incl. VAT

3

BOLT-M6X1.0X15 PH/TX-OLIVE D

7518656

$7,34 Unit Price incl. VAT

4

ASM-FUEL TANK MACH

2522198

2522558

$834,74 Unit Price incl. VAT

5

STUD-M6X1.0X25 8.8 ZOD

7520428

$19,94 Unit Price incl. VAT

6

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

7

WASHER

7555935

$4,19 Unit Price incl. VAT

8

STUD-M6X1.0X32 8.8 ZF

7527828

$13,64 Unit Price incl. VAT

9

PAD-GAS TANK

5815007

$47,24 Unit Price incl. VAT

10

PLASTIC FLOAT

5437046

$18,89 Unit Price incl. VAT

10

K-PICK UP 650/850

2208145

2212596

$220,49 Unit Price incl. VAT

10

K-FUEL PUMP 850

2208146

2211629

$989,40 Unit Price incl. VAT

11

PFA GASKET

5415105

$94,49 Unit Price incl. VAT

12

NUT-PFA

5436628

5145716

$51,23 Unit Price incl. VAT

13

PAD-RUBBER 1.0 X 2.50 X.13

5813729

$52,49 Unit Price incl. VAT

14

BRKT-FUEL TANK

5269306

$20,99 Unit Price incl. VAT

15

RIVET

7661637

$2,09 Unit Price incl. VAT

16

ASM-FUEL TANK SUPPORT

1026480

$157,49 Unit Price incl. VAT

17

SCR-SPCL M6X1.0X20 8.8 ZOD

7520464

$7,34 Unit Price incl. VAT

18

O-RING

5411174

$3,14 Unit Price incl. VAT

19

FOAM-TANK MOUNT

5815196

$9,44 Unit Price incl. VAT

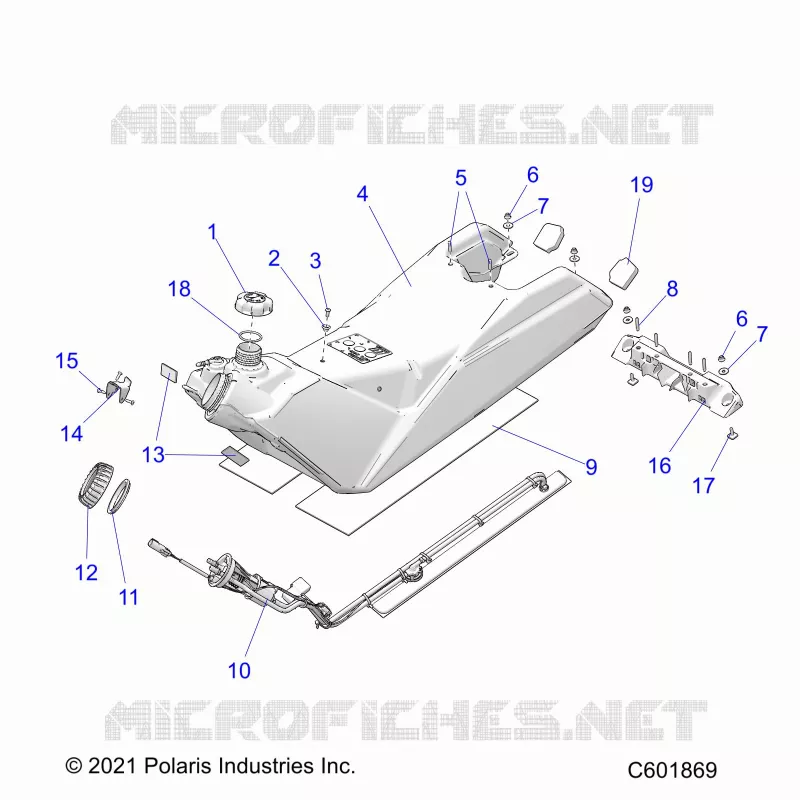

Find the detailed FUEL SYSTEM, FUEL TANK ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
