CYLINDER MANIFOLD ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503029A)
5
Parts Diagram
Parts Catalog
TOOL KIT STORM 0940782 AND STORM SKS 0940582 (4925032503028A)
by
CRANKCASE ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503031A)
CYLINDER MANIFOLD ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503029A)
1
2
2
3
3
4
5
5
5
6
7
7
7
8
8
8
9
9
10
10
10
11
11
11
12
12
12
13
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
1
2
2
3
3
4
5
5
5
6
7
7
7
8
8
8
9
9
10
10
10
11
11
11
12
12
12
13
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
1
MANIFOLD WATER OUTLET
3084650
9999999
Not Available
2
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
3
PLUG; AIR VENT
3083350
9999999
Not Available
4
ASM. BOLT&WASHER
3083729
9999999
Not Available
5
GASKET (O.W.M.)
3084688
9999999
Not Available
6
PLATE 3 (O.W.M.)
3084655
Not Available
7
FLANGE NUT
3082910
9999999
Not Available
8
HEAD CYLINDER
3084647
Not Available
9
GASKET 1HEAD
3084648
9999999
Not Available
10
STUD
3084645
9999999
Not Available
11
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
12
GASKET CYLINDER
3084525
9999999
Not Available
13
CYLINDER; COMPL.
3084644
9999999
Not Available
14
PLUG
3084428
9999999
Not Available
15
SWITCH THERMO.
3084651
9999999
Not Available
16
STUD
3080016
9999999
Not Available
17
GASKET EXH
3084439
9999999
Not Available
18
LOCK WASHER
3080530
9999999
Not Available
19
NUT
3080285
9999999
Not Available
20
PLATE 2 (O.W.M.)
3084654
Not Available
21
PLATE 1;(O.W.M.)
3084653
9999999
Not Available
22
GASKET 2HEAD
3084649
9999999
Not Available
23
CLAMP HOSE
3083394
Not Available
24
HOSE MAIN
3084665
9999999
Not Available
25
ASM-BOLT&WASHER(10)
3082030
7520783
$7,34 Unit Price incl. VAT
26
PLUG CYL.HEAD
3084529
Not Available
27
MANI. INLET WATER (Incl. 28 & 32)
3084528
Not Available
28
GASKET WATER MANI.INLET
3084531
9999999
Not Available
29
PIPE 3WATER
3084530
9999999
Not Available
30
VALVE ASMREED
3084536
9999999
Not Available
31
VALVE REED
3084563
9999999
Not Available
32
STOPPER
3084564
9999999
Not Available
33
SCREW REED
3084565
9999999
Not Available
34
BANJO BOLT
3083137
9999999
Not Available
35
GASKET; ALUMINUM
3083138
7555998
$2,09 Unit Price incl. VAT
36
VALVE CHECK
3083894
9999999
Not Available
37
BOLT FLANGE
3084126
9999999
Not Available
38
ASM-ADAPTER BAND
3083166
7082340
$36,74 Unit Price incl. VAT
39
SCREW; PAN HEAD
3083086
9999999
Not Available
40
FLANGE NUT
3083856
9999999
Not Available
41
ADAPTER COMPL.
3084652
Not Available

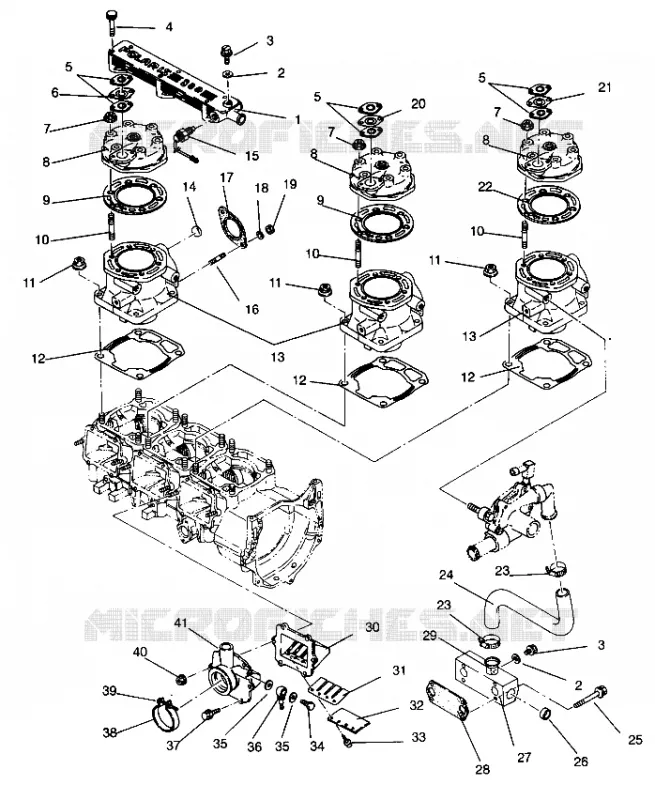

Find the detailed CYLINDER MANIFOLD ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503029A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
