1
Engine displacement
900
2
Year
2018
3
Trim
ACE 900 EPS XC
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
WHEELS, REAR
by
DOORS
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
OUTER CLUTCH COVER ASSEMBLY
2634179
$346,49 Unit Price incl. VAT
2
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
3
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
4
INNER CLUTCH COVER ASSEMBLY
2634863
$314,99 Unit Price incl. VAT
5
CLUTCH COVER GUARD BRACKET
5256223
$68,24 Unit Price incl. VAT
6
AIR OUTLET CLUTCH DUCT
5450846
$83,99 Unit Price incl. VAT
7
AIR INLET CLUTCH DUCT
5450051
$89,24 Unit Price incl. VAT
8
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
9
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
10
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
11
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
12
PLASTIC DART CLIP; NYLON
7670088
$3,14 Unit Price incl. VAT
13
SCR-#14X1-1/4 HI/LO/TAPER-Y
7519849
$6,29 Unit Price incl. VAT
14
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
15
BRKT-SCREEN BELT
5261811
9999999
Not Available
16
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
17
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
18
FILTER INTAKE; FOAM
5814026
$26,24 Unit Price incl. VAT
19
ADHESIVE FOAM SEAL
5814033
$20,99 Unit Price incl. VAT
20
COVER SEAL
5813708
$41,99 Unit Price incl. VAT
21
BOOT-CLUTCH INLET
5415544
9999999
Not Available
22
DUCT-CLUTCH AIR IN
5452289
9999999
Not Available
23
INTAKE CLUTCH BOX; LEFT
5450727
$141,74 Unit Price incl. VAT
24
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
25
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
26
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
27
HOSE-CLUTCH AIR OUTLET
5452444
9999999
Not Available

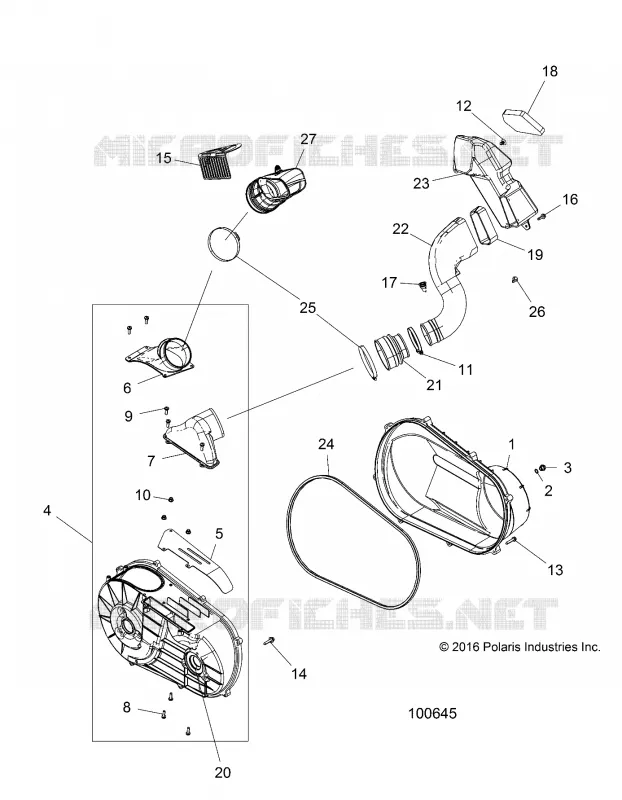

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
