SUSPENSION, RAIL BEAM LH/RH for POLARIS 650 PATRIOT INDY ADVENTURE 137 from 2024

SUSPENSION, RAIL BEAM LH/RH

1

SCR-TXTH-M6X1.0X25 8.8 ZPB

7520133

$6,29 Unit Price incl. VAT

2

RAIL TIP CAP

5452441

$26,24 Unit Price incl. VAT

3

WASHER

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

6

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

7

BUMPER-JOUNCE FTA PROG

5522253

$16,79 Unit Price incl. VAT

8

HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM

7519908

7521331-70

$1,56 Unit Price incl. VAT

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$6,29 Unit Price incl. VAT

10

BEARING; .7874 X 1.6535 X .4724

3515142

$34,64 Unit Price incl. VAT

10

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

10

ASM-WHEEL SPOKED 5.62

1590632

$66,66 Unit Price incl. VAT

11

SCREW

7517510

$9,44 Unit Price incl. VAT

12

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

13

WHEEL MOUNT BLOCK

5633278

$47,24 Unit Price incl. VAT

14

ASM-RAIL 137 PREM SVC LH NAT

1544450309

Not Available

14

ASM-RAIL 137 PREM SVC LH BLK

1544450067

Not Available

14

ASM-RAIL 137 PREM SVC RH BLK

1544451067

Not Available

14

ASM-RAIL 137 PREM SVC LH IRED

1544450293

Not Available

14

ASM-RAIL 137 PREM SVC RH IRED

1544451293

Not Available

14

ASM-RAIL 137 PREM SVC RH ISKYB

1544451737

Not Available

14

ASM-RAIL 137 PREM SVC LH ISKYB

1544450737

Not Available

14

ASM-RAIL 137 PREM SVC RH NAT

1544451309

Not Available

15

SOCKET HEAD SCREW 10 MM X 1.5 MM X 30 MM

7519844

$9,44 Unit Price incl. VAT

16

MOUNT-BUMPER METRIC

5136571

$18,89 Unit Price incl. VAT

17

PIVOT ARM BUMPER

5410925

$26,24 Unit Price incl. VAT

18

BLOCK-IDLER BOLT ADJ METRIC

5136570

$62,99 Unit Price incl. VAT

19

RIVET

7621501

$4,19 Unit Price incl. VAT

20

NUT-HH M10X1.5 NYLOC ZOD

7547442

$7,34 Unit Price incl. VAT

21

SPACER-IDLER ADJ ALUM

5141837

$13,64 Unit Price incl. VAT

22

HEX NUT; 10 MM X 1.5 MM

7547707

$7,34 Unit Price incl. VAT

23

HEX SCREW; 10 MM X 1.5 MM X 100 MM

7520083

$23,09 Unit Price incl. VAT

24

HITCH PIN

7661644

$4,19 Unit Price incl. VAT

25

PIN-CLEVIS 3/16X1 1/4

7661123

$7,34 Unit Price incl. VAT

26

SHAFT-SPRING ROLLER

5144612

$20,99 Unit Price incl. VAT

27

SPRING SQUARE GUIDE

5434334

$62,99 Unit Price incl. VAT

28

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

29

SCREW

7512025

$9,44 Unit Price incl. VAT

30

HI-FAX-146 BLK

5526364070

Not Available

31

BUMPER-JOUNCE RTA

5418223

$62,99 Unit Price incl. VAT

32

LINER-LOW PROFILE BUMPER

5451787

$12,59 Unit Price incl. VAT

33

SCREW

7510504

$10,49 Unit Price incl. VAT

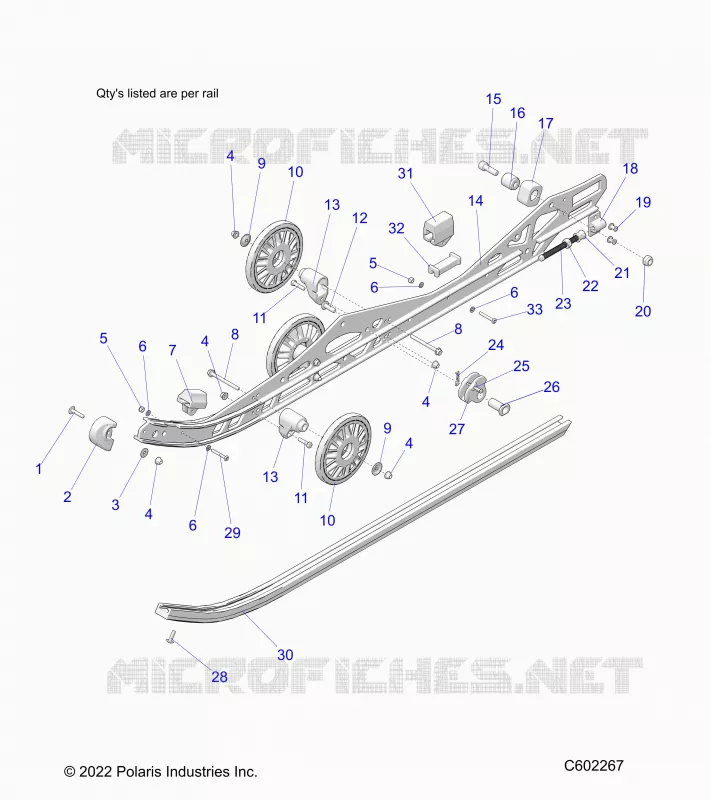

Find the detailed SUSPENSION, RAIL BEAM LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
