ENGINE, AIR INTAKE SYSTEM for POLARIS RANGER CREW 570 RIDE COMMAND from 2022

ELECTRICAL, RIDE COMMAND, AND AUDIO

ENGINE, BREATHER

ENGINE, AIR INTAKE SYSTEM

-

WRENCH-8MMX10MM OPEN END

Not Available

1

BOX; AIR INTAKE

5457956

$257,24 Unit Price incl. VAT

2

BOOT-ENGINE INTAKE

5417998

$83,99 Unit Price incl. VAT

3

CLIP

5242044

$17,84 Unit Price incl. VAT

4

AIR FILTER

7082037

$48,71 Unit Price incl. VAT

5

COMPRESSION SHAFT LIMITER; 34.4 MM

5138987

$31,49 Unit Price incl. VAT

6

DRAIN PLUG

5414472

$10,49 Unit Price incl. VAT

7

BUSHING-MOUNT

5414719

$5,24 Unit Price incl. VAT

8

COVER; AIRBOX

5457955

$125,99 Unit Price incl. VAT

9

SEAL; AIR BOX COVER

5815088

$68,24 Unit Price incl. VAT

10

BAND CLAMP; NARROW

7080707

$5,76 Unit Price incl. VAT

11

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

12

HOSE ASSEMBLY; BREATHER

2521911

$99,74 Unit Price incl. VAT

12

VALVE BREATHER WITH .53 IN BARB ID

7052577

$52,49 Unit Price incl. VAT

13

AIRBOX INTAKE DUCT

5414503

$115,49 Unit Price incl. VAT

14

SEAL ENGINE INLET

5415033

$7,34 Unit Price incl. VAT

15

HOSE; ENGINE; INLET

5417650

$29,39 Unit Price incl. VAT

16

SPRING HOSE CLAMP; .81

7081026

$14,69 Unit Price incl. VAT

17

CLAMP HOSE

7081623

$5,76 Unit Price incl. VAT

18

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

19

HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM

7519298

$7,34 Unit Price incl. VAT

20

DECAL-WARN INTAKE

7185975

Not Available

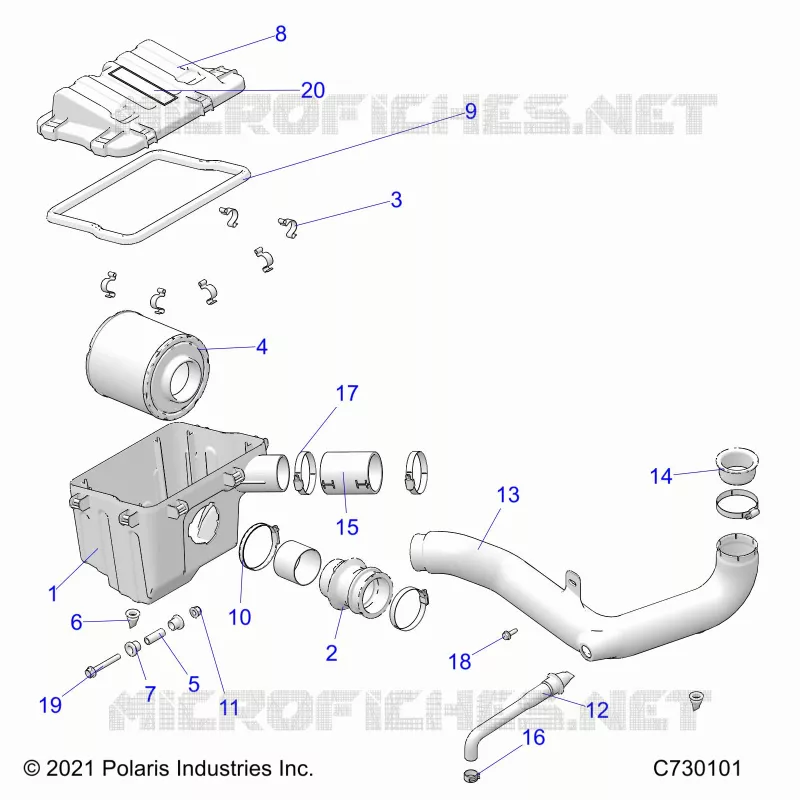

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
