1
Engine displacement
500
2
Year
1997
3
Trim
500 SKS - 0972564
4
Parts Catalog
PISTON CRANKSHAFT 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, (4938393839D004)
5
Parts Diagram
Parts Catalog
CARBURETOR (500, SKS) 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564 AN (4938393839D003)
by
FUEL PUMP 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEAN 50 (4938393839D005)

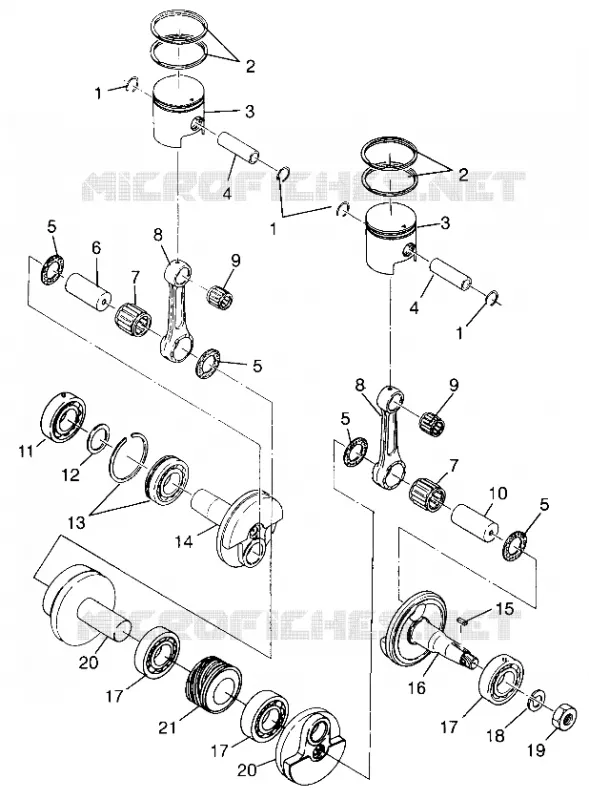

PISTON CRANKSHAFT 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, (4938393839D004)
1
PISTON PIN CLIP
3083839
9999999
Not Available
2
RING PISTON; .020 IN
3084344
9999999
Not Available
2
PISTON RING STANDARD
3084342
9999999
Not Available
2
PISTON RING .010 IN
3084343
9999999
Not Available
3
PISTON .020/.50MM O/S
3085460
9999999
Not Available
3
PISTON STANDARD
3085458
9999999
Not Available
3
SET PISTON .020/.50MM O/S
3084341
9999999
Not Available
3
PISTON .010/.25MM O/S
3085459
9999999
Not Available
3
SET PISTON STANDARD
3084339
9999999
Not Available
3
SET PISTON .010 /.25MM O/S
3084340
9999999
Not Available
4
PISTON PIN
3083858
9999999
Not Available
5
CRANKPIN SPACER
3083277
9999999
Not Available
6
PIN CRANK 2
3083456
5141629
$57,74 Unit Price incl. VAT
7
BEARING-LARGE END
3083255
9999999
Not Available
8
CONNECTING ROD
3083252
9999999
Not Available
9
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
10
PIN; CRANK
3083233
9999999
Not Available
11
BALL BEARING
3085205
9999999
Not Available
12
SPACER
3085203
9999999
Not Available
13
BALL BEARING
3085204
9999999
Not Available
14
CRANKSHAFT-3(PTO SIDE)
3085202
9999999
Not Available
15
KEY
3081447
9999999
Not Available
16
CRANKSHAFT ASM
3085206
9999999
Not Available
16
CRANKSHAFT #1
3083362
Not Available
17
BALL BEARING
3084586
3515063
$60,89 Unit Price incl. VAT
18
WASHER-SPRING(10)
3083094
7557228
$6,29 Unit Price incl. VAT
19
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
20
CRANKSHAFT 2
3083713
9999999
Not Available
21
GEAR DRIVE OIL PUMP
3083782
9999999
Not Available

Find the detailed PISTON CRANKSHAFT 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, (4938393839D004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
